D'Andrea Fine Boring Head Capto PSC-TR Elettra (PSK) is devised for machine tools application of milling, boring on various lathes, machining centres and boring machines with regard for excellent quality and remarkable precision levels. D'Andrea's high value shrink fit chucks and mechanical tool holders includes monoblock rigid designs with manual tightening for the polygonal taper interface.

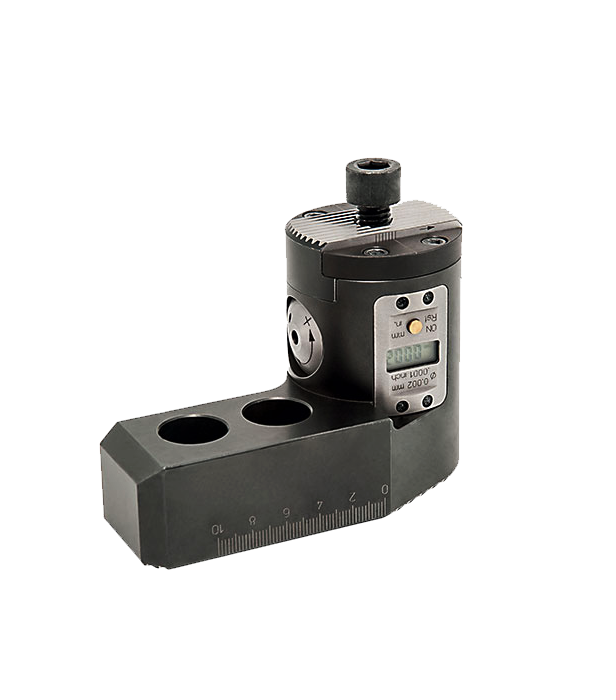

The TR-Elettra is a finishing head, where the radial displacement of the toolholder slide is viewed on a built–in digital display, providing the operator with maximum speed and accuracy of adjustment. The operating range of these heads is extensive: from 2.5 mm to 2,700 mm depending on the size of the head selected. The entire TR-Elettra range is also available as a kit, complete with all the accessories necessary for its correct use. TR-Elettra, uses the well-known D’ANDREA MHD modular system and the new PSC modular system as coupling systems, with addition on its digital evolution display on the TRM body, which is the best seller from D’ANDREA micrometre finishing head line up.

D'Andrea Fine Boring Head Capto PSC-TR Elettra (PSK) is built in accordance with the ISO 26623-1 standard. The comprehensive PSC line of cones, adaptors, extensions, reductions and direct coupling tools from D’Andrea are built in accordance with ISO 26623-1/2 – which also compatible with the existing MHD modular system, allowing the use of both systems on the same machine tool.

Depend on your application, each line up is composed of toolholders which are interchangeable and made of high quality material for lowest vibration and avoiding chatter. Apart from rotating tools, the new PSC line can also be used on turning machines with a wide-ranging and complete programme with high regard to its reasonable value in general machining, civil engineering and many more.

D'Andrea Fine Boring Head Capto PSC-TR (PSK) Features:

  • Built in display with IP67 certified electronic protection  to read the radial displacement of the toolholder slide
  • The display resolution is 0.002 mm (that is, 2 μm diameter reading).
  • Versatile application for milling, boring and end mill attachment on various metalworking operations.
  • Tool Holder Blanks for Polygonal-Shank Taper (PSK) which dramatically reduced machining time manually set up using a flange for fastening with a cam lock quick coupling, or automatically with a palletized system and special connectors.
  • Monobloc design with high-rigidity to withstand machines generate well in excess of 20,000 N
  •  The operating range is the following:
    • TR-Elettra 50: working range from Ø 2.5 mm, to Ø 110 mm.
    • TR-Elettra 63: working range from Ø 6 mm, to Ø 125 mm.
    • TR-Elettra 80: working range from Ø 6 mm. to Ø 200 mm.
    • TR-Elettra 200: working range from Ø 200 mm, to Ø 2.700 mm.

SPESIFIKASI D'Andrea Fine Boring Head Capto PSC-TR Elettra (PSK)

Harga D'Andrea Fine Boring Head Capto PSC-TR Elettra (PSK)

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
