Trimos Mini Horizontal Calibration Machine THV Series
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id

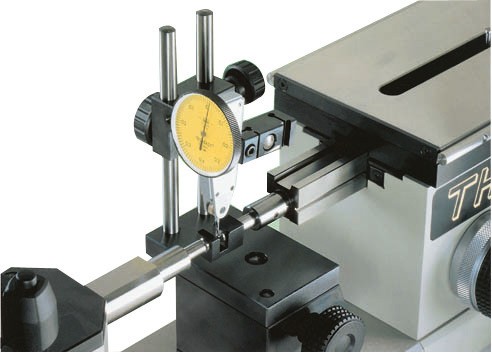

Trimos Mini Horizontal Calibration Machine THV Series has been designed for calibration and certification of gauging equipment of small dimension. It allows easy and precise checking of plug gauges, ring gauges, thread plug gauges, test and dial indicators as well as measuring of high precision production parts.
The incorporated opto-electronic measuring system guarantees high accuracy. A separate display unit or a PC with Trimos WinDHI software can be used to display the measurement results.
Features :
-
Monocoque design enable all measuring ranges being direct, it means that the whole measuring range is available without adjustment or intermediate re-calibration.
-
Ideal for use in a clean room and in the workshop area
-
The instrument meets the requirements of all ISO 9000
-
Very simple manipulation
-
Large range of accessories
-
Checking of external and internal dimensions
-
According to the application, can be sed in horizontal or inclined up to 90°
Benefits :
-
High accuracy
-
Due to its small size, The THV can be moved easily
SPESIFIKASI Trimos Mini Horizontal Calibration Machine THV Series
Trimos Mini Horizontal Calibration Machine THV Series Ordering Guide:
| Absolute measuring range | mm (in) | 50 (2) |
| Application range (external measurements) | mm (in) | 100 (4) |
| Application range (internal measurements) | mm (in) | 100 (4) |
| Max. permissible errors | µm | 0.2 + L(mm)/250 |
| Repeatability (2s) | µm | 0.1 |
| Resolutions (depending on display unit) | mm (in) | 0.1 ÷ 0.00001 (.0001 ÷ .0000001) |
| Measuring force (adjustable) | N | 0 ÷ 4 |
| Operational temperature | °C | +10 ÷ +40 |
| Temperature of storage | °C | -10 ÷ +40 |
| weight | kg | 22 |
Trimos Mini Horizontal Calibration Machine THV Series Ordering Guide:
| Code No. | Description |
|---|---|
| 20-3300 | THV with fixed table Heidenhain display |
| 20-3301 | THV with floating table Heidenhain display |
| 20-3302 | THV with fixed table D300S display P25 probe |
| 20-3307 | THV with fixed table PC display with WinDHI |
| 20-3309 | THV with floating table PC display with WinDHI |
