SPESIFIKASI Shimpo Physical Therapy Kits FGE-PT

Shimpo Physical Therapy Kits FGE-PT

Model PT Kit
Capacity FGE-PT100, FGV-PT100: 100 lb, 50 kg, 500 N
FGE-PT200, FGV-PT200: 200 lb, 100 kg, 1000 N
FGE-PT500, FGV-PT500: 500 lb, 250 kg, 2500 N
Resolution FGV/FGE-PT100: 0.1 lb / 0.01 kg / 0.1 N
FGV/FGE-PT200 & -PT500: 0.1 lb / 0.1 kg / 1 N
Accuracy +/- 0.2% F.S. @ 73°F (23°C)
Display Reversible 4-Digit LCD, 0.47˝ high (12 mm) with various indicators including tension and low battery indication
Mode Real time or Peak hold mode
Display Update Selectable
Sampling Rate 1000/sec
Overload Capacity 150% of F.S.; 200% of F.S. for 100 lb
Power Rechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Temperature Limits 32 to 104°F (0 to 40°C)
Dimensions FGV/FGE-PT100, -PT200: 5.8˝ x 3˝ x 1.5˝ (147 x 75 x 38 mm)
FGV/FGE-PT500: 8.43˝ x 3.23˝ x 2.25˝ (214 x 82 x 57 mm)
Kit Weight PT100 Kits: 6.3 lb (2.85 kg)
PT200 Kits: 6.65 lb (3 kg)
PT500 Kits: 7.5 lb (3.4 kg)
Kit Includes Force gauge, carrying case and attachments (hook, chisel, flat head, notched head, hanger, cone head, extension rod, metric to inch adapter), padded ERGO accessories, handle, AC adapter/charger, N.I.S.T. traceable certificate of calibration and FGV-RS232 cable (w/FGV series only)
Certification CE, RoHS
Warranty 2-Year


Shimpo Physical Therapy Kits FGE-PT Ordering Guide:

FGE-PT100 Physical therapy kit with FGE-100XY gauge
FGE-PT200 Physical therapy kit with FGE-200XY gauge
FGE-PT500 Physical therapy kit with FGE-500XY high capacity gauge
FGV-PT100 Physical therapy kit with FGV-100XY datalogging gauge
FGV-PT200 Physical therapy kit with FGV-200XY data-logging gauge
FGV-PT500 Physical therapy kit with FGV-500HXY high capacity data-logging gauge
NIST-FG NIST traceable certificate of calibration for ranges 0.5 to 100 lbs
NIST-FG-HC NIST traceable certificate of calibration for ranges 200 to 1000 lbs


Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

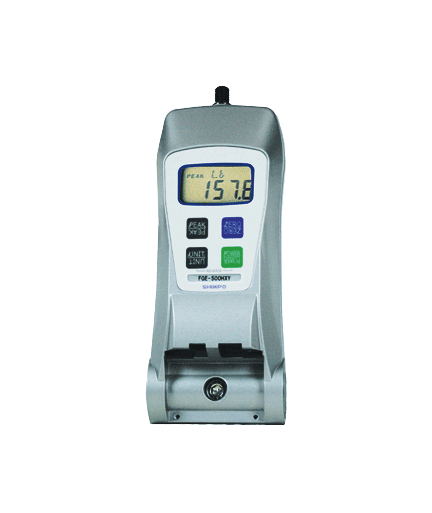

Shimpo Physical Therapy Kits FGE-PT is devised as a compact kit in measuring physical fitness, muscle strength and ergonomic force testing. Shimpo Physical Therapy Kits FGE-PT is using the SHIMPO digital fore gauge technology which have been proven reliable in industrial application. Shimpo Physical Therapy Kits FGE-PT is practical for professional Physical Therapist on sports club, muscle building instructor and product ergonomist. Shimpo Physical Therapy Kits FGE-PT is lightweight, sturdy, recordable and reliable for Isokinetic testing and job task analysis. The Shimpo PT kits with digital force gauges are ergonomic and convenient to operate. In addition, the Shimpo FGV-PT series kits are equipped with free software for Force data collection.

All Shimpo Physical Therapy Kits FGE-PT are capable of displaying peak compression, tension or real time forces. This versatile Shimpo Physical Therapy Kits are furnished with padded ERGO accessories, handle adapters and N.I.S.T. traceable certicates of calibration. The Shimpo Physical Therapy Kits FGE-PT is also the ideal investment for A.D.A Compliance, workplace design, consumer product research as in motorcycle's hand-clutch lever, brake-hydraulic pedal and lever force testing in automotive and various ergonomic studies.


 Shimpo Physical Therapy Kits FGE-PT Features:
