SPESIFIKASI Shimpo Force Gauge FGV X Series

Shimpo Force Gauge FGV X Series



Shimpo Model

FGPX-0.2

FGPX-0.5

FGPX-1

FGPX-2

FGPX-5

FGPX-10

FGPX-20

FGPX-50

FGPX-100

FGPX-250H

FGPX-500H

Capacity(R.C.)

±2.000N
(±200.0g)
(±0.5lb)
±5.000N
(±500.0g)
(±0.1lb)
±10.00N
(±1000g)
(±0.2lb)
±20.00N
(±2.000kg)
(±5lb)
±50.00N
(±5.000kg)
(±10lb)
±100.0N
(±10.00kg)
(±20lb)
±200.0N
(±20.00kg)
(±50lb)
±500.0N
(±50.00kg)
(±100lb)
±1000N
(±100.0kg)
(±200lb)
±2500N
(±250.0kg)
(±550lb)
±5000N
(±500.0kg)
(±1100lb)

Display range

±2.000N
(±200.0g)
(±0.5lb)
±5.000N
(±500.0g)
(±0.1lb)
±10.00N
(±1000g)
(±0.2lb)
±20.00N
(±2000kg)
(±5lb)
±50.00N
(±5.000kg)
(±10lb)
±100.0N
(±10.00kg)
(±20lb)
±200.0N
(±20.00kg)
(±50lb)
±500.0N
(±50.00kg)
(±100lb)
±1000N
(±100.0kg)
(±200lb)
±2500N
(±250.0kg)
(±550lb)
±5000N
(±500.0kg)
(±1100lb)

Resolution

0.001N
0.1g
0.001lb
0.01N
1g
0.001lb
0.01N
0.001kg
0.001lb
0.1N
0.01kg
0.01lb
1N
0.1kg
0.1lb

Unit

N,kg(g),lb(oz)(Reversible display)

Measuring mode

Standard measuring,Plus peak measuring,Minus peak measuring

Display cycle

1,2,3,5,10,20 times per second

Sampling Rate

1000 times per second

Accuracy

±0.2% R.C. ±1/2digit(23℃)

Influence of temperature

Gain:±0.01% LOAD/℃ Zero:±0.01%/R.C./℃

Display

Main display:4-digits 12mm high, Reversible display
Hi_NG, OK, Lo_NG LED indicators
Other display
1."LO BAT"(Decrease battely voltage),
2."BAT"(Battery charge),
3."OVR"(Over load),
4."Peak"(Peak hold mode)

Overload

200% R.C. 150%R.C.

Tracking

Available(ON/OFF)

 Output

USB

Communicate with PC by special application software (max 100x/s). Connection cable is a standard accessory.

RS-232C

Communicate with PC by special command(maximum 100 times per second), Connection cable is option.

Analog

±1V, Accuracy ±50mV, through a 12 bit D/A converter

Output update 1000 times per second, Acceptable tare, Load resistance is more than 10k Ω

 Overload/

Comparator

Open-collector output(Max DC30V/5mA).Either overload output or comparator output.

Power

Rechargeable Nickel hydride battery or AC adapter/charger, measurable during the charge

Operating hours: about 8 hours after full charge

Charging time: Max 16 hours (when the battery is full, charge ends automatically.)

Auto Power Off

10 minutes (not active if adapter/charge is in use) or OFF

Memory function

Continuous memory: 1000 data, Single memory: 100 data, Standard memory: 50 data
Statistic function(max, minimum, peak, average, standard deviation)

Comparator function

Yes (high and low)

Temperature range

0-40℃ no condensation

Humidity range

35~85%RH no condensation

Dimensions

147mm *(L)×75mm(W)×38mm(H) 214mm *(L)×82mm(W)×57mm(H)

Weight

Approx.450g Approx.500g Approx.900g
Approx.1000g

Accessories(Included)

AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, extension rod, USB cable

Application software

Application software (USB version), ToriemonUSB
  • Dimension for FGP-0.2~0.5 is 141mm, FGP-100 is 149mm.

Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

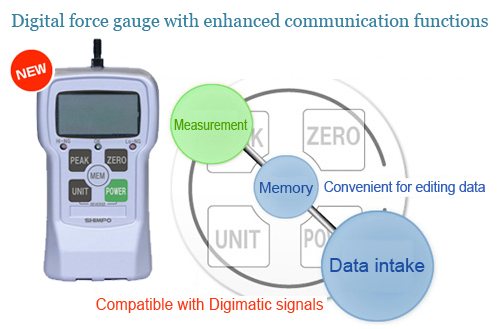

Shimpo Force Gauge FGV X Series are devisd by Shimpo for ultra high-performance force gauge with measuring range of minimum 2N up to maximum of 5000N. Shimpo Force Gauge FGV X are equipped with digital readout and enhanced communication functions for data transfer. Shimpo Force Gauge FGV X Series are devised with metal enclosure for durable use so that you may work efficiently, store and manipulate the data on the PC. The Shimpo Force Gauge FGV X Series are designed for convenient testing and durability on various sets of application in your lab as well as in your factory floor.

Shimpo Force Gauge FGV X Series features:

  1. Instant result which displaying high speed measurement with sampling rate of 1000 times per second
  2. Memory function is available which include continuous memory, Single memory, standard memory, with memory capacity; 1000 data in continuous memory mode
  3. LED Indicators with "HI, LO, OK" LED indication
  4. USB communication to collect and transfer data to any PC with an industry standard USB interface.
  5. Transfer data to Excel with  software "Toriemon USB" included in the sales package to enables data collection at 100 times per second.
  6. Built-in comparator function with upper limit and lower limit value settings. Pass-fail (Yes/No) judgment of the measurement value can be made.



">
