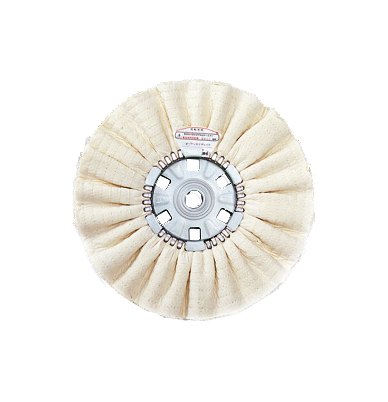

Koyo-Sha Bias Cloth Buff Disc

Segera Hubungi Kami :

(62) 778 408 6403

sales@lfc.co.id

SPESIFIKASI Koyo-Sha Bias Cloth Buff Disc

Koyo-Sha Bias Cloth Buff Disc Types:

Wide Finger Sisal Buff is the buff with sisal cloth inserted in cotton cloths, then molded in loose pleats, fixed with a clinch ring in center infoldings and machine-sewn with moderate intervals.
Wide Finger Sisal Buff is suitable for cutting / cut & coloring of steel and stainless steel due to uniformity and moderate hardness when contacting with workpiece.
3 types according to stitching method. All buffs are treated.

A-Type : Standard (Sewing on spiral)
B-Type : 1 stitch (1cm from clinch ring)
C-Type : 2 stitches (1cm from clinch ring and middle part between periphery and clinch ring)

*Flanges on Koyo-Sha Bias Cloth Buff are all sold separately.

Koyo-Sha Bias Cloth Buff Disc Dimension:



Compatible Flanges for Koyo-Sha Bias Cloth Buff Disc:



Koyo-Sha Bias Cloth Buff Disc Application Guide:

Division Subdivision Initial Applications
Alumina abrasives Brown alumina abrasives A Abrasives cloth & paper
Grinding stone
Fire-resisting material & others
White alumina abrasives WA Abrasives cloth & paper
Grinding stone
Fire-resisting material & others
Ruby fused alumina
abrasives
PA Abrasives cloth & paper
Precision grinding stone
Mono chrystaling fused
alumina abrasives
HA Abrasives cloth & paper
Precision grinding stone
Artificial emery abrasives AE Abrasives cloth & paper
Buff
Blast
Alumina zirconia abrasives AZ Abrasives cloth & paper
Heavy duty grinding stone
Silicon carbide abrasives Black silicon carbide
abrasives
C Abrasives cloth & paper
Grinding stone
Fire-resisting material
Stone & others
Green silicon carbide
abrasives
GC Grinding stone
Fire-resisting material
Stone
Catalyst & others



Koyo-Sha's Common Buffing and Compounds Combination Guide:

The following chart will help in deciding which wheels and compounds to use when polishing dissimilar materials.

This chart is a starting point and experienced polishers may vary the materials used to suit different applications.

 PlasticsSilver, gold & thin platesNickel & chrome platingCopper, brass, aluminium, pot metal & soft metalsSteel & ironStainless steel
Buff typeRoughInitial buffFinal buffRoughInitial buffFinal buffRoughInitial buffFinal buffRoughInitial buffFinal buffRoughInitial buffFinal buffRoughInitial buffFinal buff
Sisal                   X     X     X
Spiral sewn               X     X     X     X
Loose                       X     X     X
Canton flannel           X     X
String X X X
Compound
Black                   X     X     X
Brown                     X
White               X       X   X
Blue X X X     X     X           X
Green                                 X X
Red           X     X           X



BLACK = Emery Compound, a coarse abrasive material for removal of scratches, pits, paint, rust etc.

BROWN = Tripoli compound used for general purpose cut and color on most soft metals.

WHITE = Blizzard compound, used for color and final finish of harder metals, has a cutting action.

RED = Jeweller’s Rouge, designed to polish without any cutting action. Safe on thin plates. Use your own wheel.

BLUE = A dryer, almost greaseless wheel - designed to polish without any cutting action. Safe on thin plates. Use your own wheel.

GREEN = Used exclusively for Stainless Steel.

Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

The "bias-cut" is a technique used by tailors and dress-makers for cutting cloth. The greater stretch in the bias (diagonal) direction of the fabric, helps it accentuate body lines and curves and drape softly. The bias of a piece of woven fabric is at 45 degrees to its warp and weft threads. Every piece of woven fabric has two biases, at right angles to each other. Fabrics which are not woven, such as felt, do not have a bias.

On industrial application, Koyo-Sha Bias cut are devised with 12~16mm of high quality cloth buff in thickness. 16-ply (sheets) of cloth are fixed with a clinch ring in center infolding in order to have plenty of pleats of bias-cut cloth. The more the pleats, the harder the buff becomes. Koyo-Sha Bias Cloth Buff is optimized for finer polishing on various surface. However, when the workpiece's surface are of irregular shape, corrugated and need to be woked with moderate cutting, Koyo-Sha Wide Finger sisal buff will perform much better.

Koyo-Sha Bias Cloth Buff Disc are classified into 5 stages as M-0, 2, 4, 6, 8 by their softness. As a guidance of polishing process, M-4~8 are used for cutting and cut & coloring and M-0~2 for coloring. Koyo-Sha Bias Cloth Buff, with many characteristics listed below, are suitable for wide range of buffing with manual or with automatic polishing machine from cutting to coloring.

Koyo-Sha Bias Cloth Buff Disc Features:

">
