OVERVIEW

Trimos V Plus Series Digital Height Gauge is a Swiss made gauge, genuinely optimized to shop-floor situations where accuracy, repeatability, practicality and ruggedness are required. The Trimos V+ Series Digital Height Gauge measures automatically with its motorised gauge which powered by rechargable battery. Trimos V+ Series Digital Height Gauge is equipped with built in air cushion which enables great ease of movement and speed of operation. The measurement result then displayed by its clear LCD and can be transmitted to spreadsheet software.

The adjustable measuring force of V Plus models between 0.7 N and 1.6 N (0.3 N on request) allows the performance of measurements on components of delicate material. The result of a modular instrument concept is a complete series with application ranges from 300 mm to 1235 mm

LONG PROBES

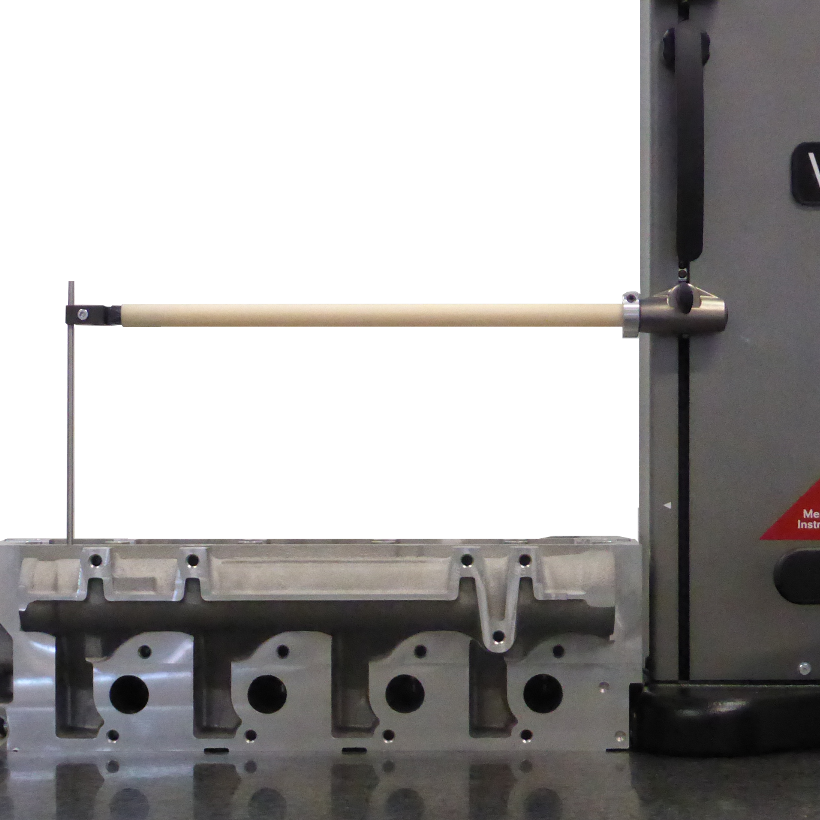

The great robustness and flexibility of Trimos height gauges allow the use of very diverse probes up to 400 mm long with a breathtaking repeatability.

EXCEPTIONAL PRECISION

Trimos height gauges have been developed for the most demanding users. Laboratoires and workshops for whom measuring reliability is determining will fully appreciate their exeptional precision level.

Features :

  • Unique touch sensitive probe

  • Direct RS232 output

  • Built in air cushion activation (600 & 1000mm versions)

  • Adjustable measuring force

Benefits :

  • Perfect for use in the workshop area

  • Extremely easy to operate

  • Autonomous use with rechargeable battery pack

  • Extremely large display of values

  • Acceptance of a measured value by acoustic signal

SPESIFIKASI Trimos V Plus Series Digital Height Gauge

 Trimos V+ Series Digital Height Gauge Ordering Guide:


Code No.Range (mm)Range (inch)Operational TimeApplication Range (mm)Application Range (inch)Repeatability (mm)Repeatability (inch)ForceWeightResolution (mm)Resolution (inch)SpeederNote
20-34300 300mm 12" 100 hours 535mm 21" 0.002mm 0.0001" 0.7-1.6N 10kg 0.01 / 0.001mm 0.0005 / 0.00005" 3m / sec -
20-34601 600mm 23.6" 100 hours/30hours (air) 835mm 32.8" 0.002mm 0.0001" 0.7-1.6N 12kg 0.01 / 0.001mm 0.0005 / 0.00005" 3m / sec With base air pump
20-341001 1000mm 48.6" 100 hours/30hours (air) 1235mm 48.6" 0.002mm 0.0001" 0.7-1.6N 16kg 0.01 / 0.001mm 0.0005 / 0.00005" 3m / sec With base air pump
