SPESIFIKASI Sylvac Digital Height Gauge Z5

Sylvac Digital Height Gauge Z5 Dimensions:

Sylvac Digital Height Gauge Z5 dimensions



Sylvac Digital Height Gauge Z5 Ordering Guide:

    936.0700
 Measuring range  mm 711
 Measuring range with extension  mm 1023
 Max. Error  µm 2.5 + L / 300
 Repeatability RMPE  µm 2
 Frontal sqaureness deviation SMPE  µm 8
 Maximum resolution  mm 0.001
 Measuring force  N 0.75 ÷ 1.5
 Autonomy  h 12
 Output data  USB / RS232
 Air cushion
 Weight  kg 24
 Programmable by PC
 Zero setting
 Min/max/delta
 PRESET function
 Simultaneous display of diameters and centerlines
 Thickness, chain and height measurements

Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

The latest 700 mm Sylvac Digital Height Gauge Hi_Gauge Z5 is developed for high versatile use within a 2 µm repetitive accuracy. Sylvac Digital Height Gauge Z5 is built to conform with the strictest ISO 13225 standard with a major improvement from the highly regarded Sylvac Height Gauge Hi_Cal Series. Thanks to its motorised displacement, this device accomodates manual interpolation nd within a larger screen, you can see a simultaneous display of diameters and centerlines. Available in 700 mm capacities which are extendable to 1023 mm, the robust Sylvac Digital Height Gauge Hi_Gauge Z5 is also equipped with RS-232 or USB connectivity so that you can easily record and transmit the measurement data to any devices.

Your investment on Sylvac Digital Height Gauge Hi_Gauge Z5 will allow you to unlocks higher level of precision for various application. Compared to other brands, the easily configured sequences of Sylvac Digital Height Gauge Hi_Gauge Z5 ensure higher productivity within two travel speeds which offer a great comfort during the measurement of wider range of diameters. The impressively compact form factor also provide lightness versatility of handling on top of granite or cast iron table. Furthermore, you can also combine and manage Sylvac Z5 height gauge for traceable multi-gauging application with Sylvac's multi-plexer software Sylcom, which is highly regarded by many end user for its remote management in precision tool and jig making, auto-industry, defense-military and calibration labs company as well.

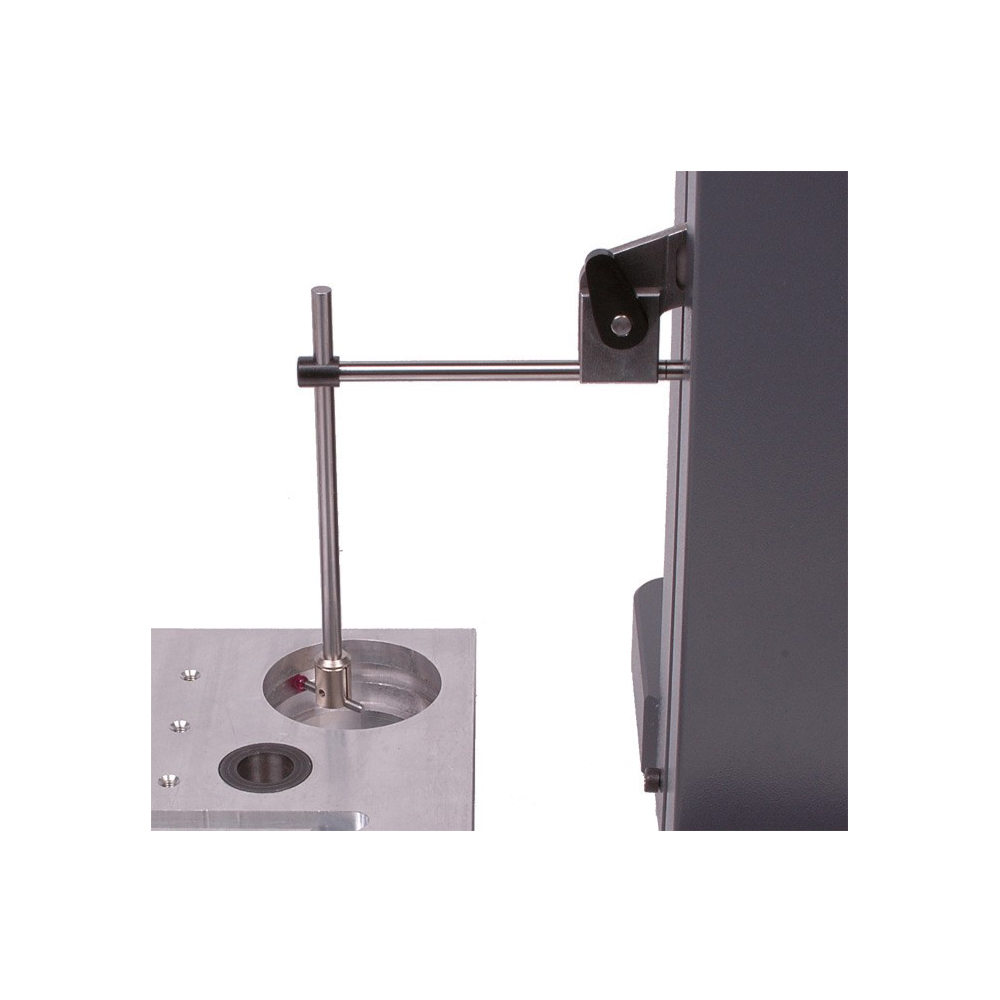

Sylvac Digital Height Gauge Hi_Gauge Z5 is a highly valuable height gauge for your improvised measurement. This fine height gauge is optimized with a longer type of datum/anvils which is necessary for vertical measurement and as a precision comparator of other type of gages as well. The datum/anvils is available with 3 selectable models of Ø8 mm ball probe, pointy tracing probe and clamping stem model. However, If you are also considering a basic manual height gaging device with max 600mm of range, you might want to consider Sylvac Digital Height Gauge Hi_Gauge ONE.

Sylvac Digital Height Gauge Hi_Gauge Z5 Features:

Sylvac Digital Height Gauge Z5

Read about our article on height gauges here or go to https://www.lfc.co.id/blog/detail/Basics-of-Height-Gauges.

">
