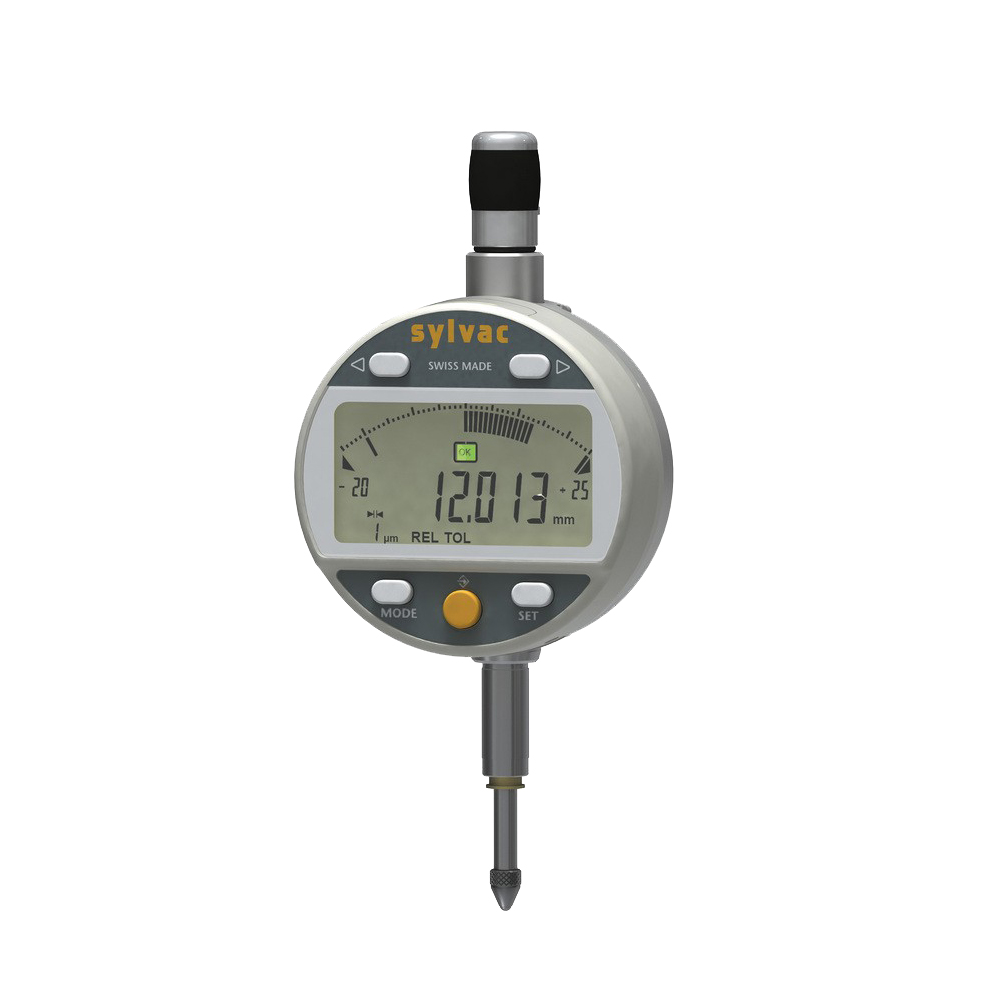

Sylvac Digital Test Indicator S_Dial S234 IP65

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Sylvac Digital Test Indicator S_Dial S234 is devised to accurately measure small distances, cylinders and angles, and amplify them to make them more obvious readings. Sylvac Digital Test Indicator S_Dial S234 is engineered with both digital display and an analog bar for convenient reading. With repeatabilty up to 3µm, you can conveniently realize the presence or exact quantity, of some small distance  (for example, a small height difference between two flat surfaces, a slight lack of concentricity between two cylinders, or other small physical deviations).



Sylvac Digital Test Indicator S_Dial S234 is a versatile and sensitive instrument that uses as low as 0.07 Newton of measuring forces. Sylvac Digital Test Indicator S_Dial S234 is equipped with a variety of ball shaped anvils. This shape gives point contact, allowing for consistent measurements as the tip moves through its arc (via consistent offset distance from ball surface to center point, regardless of ball contact angle with the measured surface). Thanks to its 0.001 mm resolution, you can apply this test indicator to gauge concentricity, roundness, surface roughness, run-out and direct attachment on improvised multi-gauging jigs.



Sylvac Digital Test Indicator S_Dial S234 has many advantages over comparable brands as it can record and transmit measurement data collected to any device, through a RS-232 or USB connectivity. This facilitates statistical process control (SPC), which allows both the measurement data and the fabrication inspection to be properly recorded in a tabular dataset (such as a database table or spreadsheet) for statistical analysis on them. Sylvac Digital Test Indicator S_Dial S234 can also be used for improvised gaging rig with Sylvac's gaging multiplexer software.



An additional feature of the Sylvac Digital Test Indicator S_Dial S234 is a built in converter to display data collected in either in metric or inch units. This obviates manual recording and converting of long columns of numbers, which not only reduces the risk of the operator's errors (such as digit transpositions) but also improves the productivity of the process by reducing the human resources needed for time-consuming data recording, calculating and copying tasks.







Sylvac S_Dial S234 Digital Test Indicator Features:

  • Measuring range 0.8 / 0.5 mm
  • Digital and analog display
  • Water and coolant resistant
  • Protection rating for water and coolant resistant IP65 according to IEC 60529, with or without connector
  • Data output RS 232 combined with external power
  • Sleeping mode after 20 min. of non usage (system S.I.S)
  • Stem Ø 8 mm and dovetail back
  • Rotating display over 360°
  • Automatic switch OFF





SPESIFIKASI Sylvac Digital Test Indicator S_Dial S234 IP65

Sylvac Digital Test Indicator S_Dial S234 IP65 Dimensions:

Sylvac Digital Test Indicator S_Dial S234 dimensions



Sylvac Digital Test Indicator S_Dial S234 IP65 Ordering Guide:

    905.4321 905.4322
 Measuring range  mm 0.8 0.5
 Probe length  mm 12.5 36.5
 Hysteresis fu  µm 31) 41)
 Measuring force  N 0.13 ± 15% 0.07 ± 15%
 Resolution  mm 0.001
 Max error fe  µm 10
 Repeatability  µm 3
 Weight  g 75
 S_Connect: Power USB / RS232 / Wireless 2)
 IEC 60529 protection IP65 with or without connector
 Zero setting
 min / max / delta display
 Analog scale range ratio
 Selection of resolution
 Preset max 99.999

1) ± 1 digit
2) Sylvac cables. See accessories category
