Sylvac Digital Display D50S

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

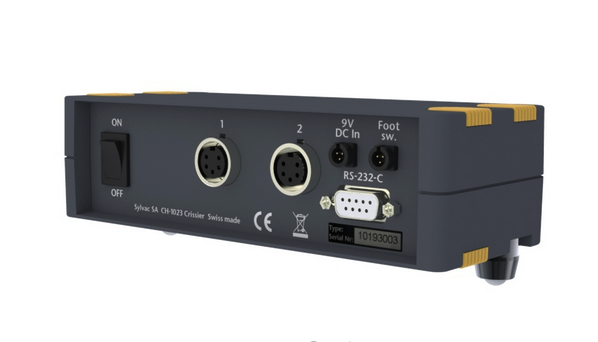

The Sylvac Digital Display D50S is devised for fast processing and response display of values from probes. The Sylvac Digital Display D50S is a value line of 8-digit display that is equipped with 2 probe inputs and an RS232C output for further processing or recording of data on a spreadsheet. The IP40 certified enclosure is made of a shock and heat resistance thermoplastic polymer  for easy manipulation and operation on the industrial floor.

With a display resolution of 0.1um, up to 2 Sylvac probes can be displayed efficiently for various gauging appication within a reasonable budget.

The versatility of the Sylvac digital display D50S is highly regarded for various quality control production lines and jig-fixture fabricators for its improvised arrangement on multi-gauging of fixtures. Thanks to its automatic display with auto detection sensing capabilities, you can scan selected channels with several integrated functions to resolve most metrological problems. However if you are looking for a multifunctional display unit with 64 channels, you might also wants to consider Sylvac LVDT Display & Gauge Amplifier S_View D100S or even a touchscreen model the Sylvac Digital Display D400S IP65.

Sylvac Digital Display D50S Features:

  • Digital display with 2 probe inputs
  • Data output RS232C
  • Power supply by external unit
  • Light and compact
  • Correction of linearity on both channels (D50S PRO)
  • Reversible measuring direction
  • Direct inch/metric conversion for ease of use
  • RS232 duplex with command structure
  • Programmable preset with lockable function keys
  • Foot pedal connection
  • Built-in calibration sequence

Sylvac Digital Display D50S applications





SPESIFIKASI Sylvac Digital Display D50S

Sylvac Digital Display D50S Ordering Guide:

    804.1050 804.1060
 Type  D50S D50S PRO
 Max. Error  µm P2: 1.5 / P5: 1.6 / P10: 1.6 / P25: 1.9 P2: 0.5 / P5: 0.6 / P10: 0.6 / P25: 0.8
 Repeatability   µm P2: 0.2 / P5: 0.2 / P10: 0.2 / P25: 0.2 P2: 0.2 / P5: 0.2 / P10: 0.2 / P25: 0.2
 Overall dimensions  mm 180 x 75 x 50
 Weight  kg 0.3
 Case  Terblend Plastic
 Protection according to IEC 60529  IP40
 Output data RS232 / USB / Digimatic
 Programmable by PC

  1) Max error on D50S PRO paired with a probe
