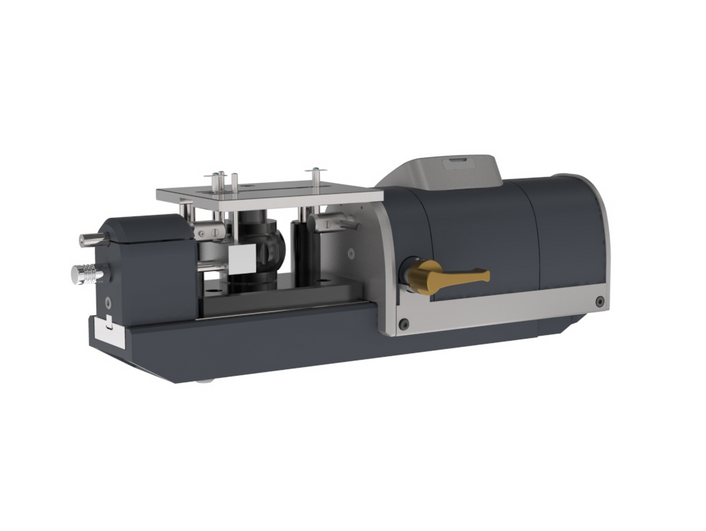

Sylvac Bench Table Measurement PS16 V2 LV is devised as a versatile micro-meter in measuring internal external diameter, concentricity, gearing pitch, micro thread, and more. The PS16 V2 LV bench has a built in large digital display and single lever operational to clamp specimen easily with ergonomics and accuracy. Thanks to its user-friendly design and Bluetooth® connectivity, you can also have both faster rates of inspection with data transfer to smartphones or spreadsheet on PC.

Sylvac's exceptional bench tables are designed to check dimensions up to 70 mm.  For routine or regular maintenance, you can simply use a limit gage as a master to compare its precision accuracy. Sylvac Bench Table Measurement PS16 V2 LV can also be equipped with x,y,z-stage to mount the specimen accurately. Furthermore, you can also arrange an improvised multi-gauging rig with digital display.

Compared to regular external-internal micrometer and bore gauges, Sylvac Bench Table Measurement PS16 V2 LV offers higher accuracy, easier handling, and versatility as you no longer need to calibrate its stand or worrying a constant pinching force to interpolate the measurement. These bench tables can also be equipped with different kind of tables and additional dial indicators to fit your needs as well as several types of anvils of any shapes. A ball bearing, an adjustable and reversible measuring force, as well as many other features and accessories make the table a must-have for your workshop or your inspection room.

Sylvac Bench Table Measurement PS16 V2 LV will allow you to have a quality inspection which requires high precision workpieces such as a smaller fasteners and mechanical devices as in the medical, sensor, and electronics industry. However, if you are looking for a much smaller range with 3-points anvils and mini indicator, you might also wants to consider Sylvac Bench Table Measurement PS16 V2 3-Points.

Sylvac Bench Table Measurement PS16 V2 LV Features:

  • 2 points measurement with centering pins
  • Table height adjustable up to 20mm
  • Led tolerances status
  • A ball bearing, as well as many other features and accessories make these tables a must for your workshop or your inspection room
  • Adjustable measuring force
  • Standard measuring anvils 0.4mm
  • Integrated Bluetooth® Smart technology and usb slot which can be connected to PC, dsplay unit and smartphones.
  • Highest repeatibility on its class 0.2µm.
  • Maximum error of 1.5µm.
  • Battery powered with auto-off function.
  • Adjustable measuring force.
  • Large selection of tables & anvils.
  • Built-in display with 0.1µm resolution.

SPESIFIKASI Sylvac Bench Table Measurement PS16 V2 LV

Sylvac Bench Table Measurement PS16 V2 LV Dimensions:

Sylvac Bench Table Measurement PS16 V2 LV dimensions



Sylvac Bench Table Measurement PS16 V2 LV Ordering Guide:

    808.1233 808.1234
 Mx. Capacity C  mm Ø0 12-62 Ø24-70
 Max. Error  µm 6.0 6.0
 Repeatability   µm 1.5 1.5
 Resolution  µm 0.1 0.1
 Measuring force (Adjustable)  N 0.1 - 0.6 1)
 Weight  kg 5.1 5.1
 Anvils clamping dimension  mm Ø1.5

1) ±20%
