Sylvac Micro Bench Table Measurement PS17 Entre-portée

Segera Hubungi Kami :

(62) 778 408 6403

sales@lfc.co.id

SPESIFIKASI Sylvac Micro Bench Table Measurement PS17 Entre-portée

Sylvac Micro Bench Table Measurement PS17 Entre-portée Dimensions:

Sylvac Micro Bench Table Measurement PS17 Entre-portée dimensions



Sylvac Micro Bench Table Measurement PS17 Entre-portée Ordering Guide:

    908.1245 908.1244
 Type VP VS
 Measuring system Probe 10 mm Dial gauge
 Tailstock adjustable in Z ±1.75 mm
 Measuringment capacity C  mm 0 - 37
 Measurement scale  mm 0 - 10
 Measurement force  N 1
 Working temperature (storage)  °C 5 - 40 (-10 -60)
 Weight  kg 1.4
 Cary Compatibility
 Micrometer screw

Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

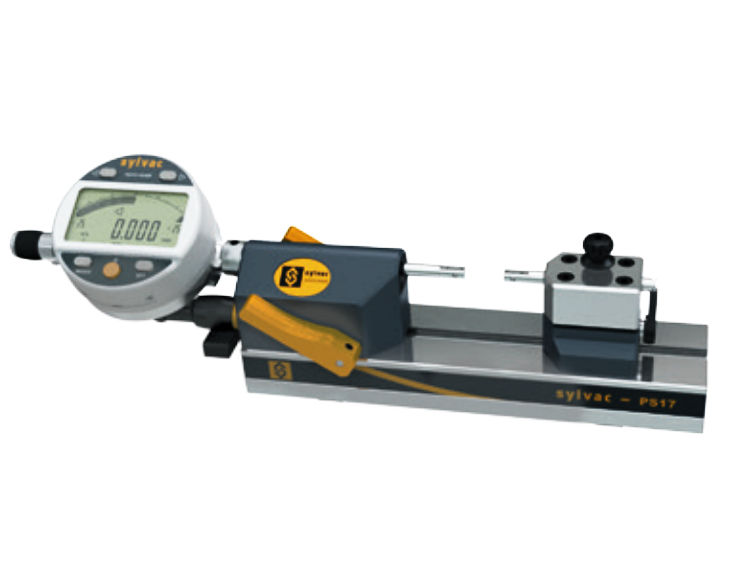

Sylvac Micro Bench Table Measurement PS17 Entre-portée is an innovative micro-meter bench table that combines capacitive probes with the movable end of precision anvils (tailstock). You can measure outer diameters of the various shapes of precision parts up to 37mm in range. You can measure gearing pitch, micro thread, outer diameter, thickness and more by its 2-Points anvils. The Micro Bench Table Measurement PS17 is double lever operational to clamp smaller parts easily with ergonomics and accuracy. Thanks to its user-friendly design and compatibility with Sylvac's dial gauges, Sylvac dial probes, and other accessories, you can also have both faster rates of inspection with the versatility of data transfer connectivity.

Built for watchmaking, jewelry, and precision mechatronics industries, Sylvac Micro Bench Table Measurement PS17 Entre-portée offer higher accuracy, easier handlings, and versatility. The Swiss made bench table can also be equipped with additional kinds of micro tables or vise and additional dial indicators to fit your needs. The dovetail track allows for the tailstock to be adjusted swiftly without any lubrication needed. A ball bearing, an adjustable and reversible measuring force, as well as many other features and accessories make these tables a must-have for your workshop or your inspection room.

Sylvac Micro Bench Table Measurement PS17 Entre-portée will help you to have a more efficient workflow and time management with fluid handling of the various shapes of the workpieces. Sylvac PS17 PS17 Entre-portée can also be equipped with x,y,z-stage to mount the specimen accurately. Depending on the models, the bench tables can be equipped standard Sylvac anvils or Cary type anvils.  Compared to a micrometer, the Sylvac Micro Bench Table Measurement PS17 Entre-portée is highly suitable for quality inspections on small precision workpieces such as small fasteners, mechanical devices as for medical, sensor, and electronics industry, However, if you are looking for a basic bench with 2 points anvils you might also want to consider Sylvac Bench Table Measurement PS16 V2.



Sylvac Micro Bench Table Measurement PPS17 Entre-portée Features:



">
