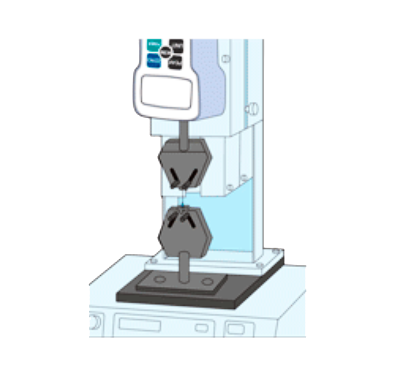

Shimpo Wedge Grips Force Gauge Jig GC-50 is devised for firmly holding a test specimen with up to 500 Newton, which are suitable for pulling wire, cables, rubber belt, ropes within a the touch of a lever. This self-tightening mechanism allows any digital or analog force gauge to run a precision testing of pull combination with either motorized-programmable force test or with manual pulling stand combination.

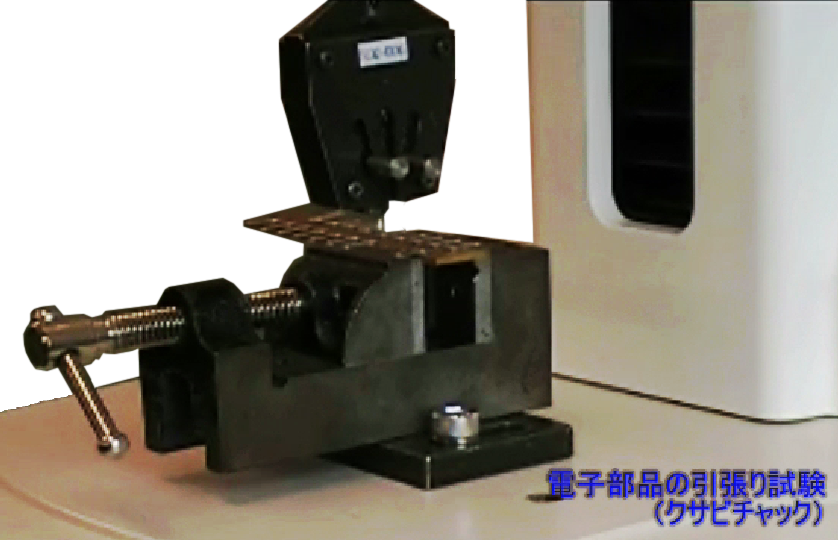

You can also clamp the lower end part of the specimen with regular locking vise while using this compact clamping attached to the force gauge connecting pin. Shimpo Wedge Grips Force Gauge Jig GC-50 is highly recommended for any Shimpo force gauge or any brands on your current workbench. Depend on your budget, you can also order this heavy duty clamp with either manual hand-crank lever or or Shimpo motorised digital stand as well.

Shimpo Wedge Grips Force Gauge Jig GC-50 features:

  • The self-tightening mechanism with a wedge effect firmly holds the test piece.
  • The test piece can be easily attached and removed with one touch, thus allowing efficient operation.
  • Compatible gauge attachement with all Shimpo force gauge such as FGJN-1~50, FGP-1~50 and FGPX-1~50.
  • Suitable tensile rupture tests on bars and plates and many more.



SPESIFIKASI Shimpo Wedge Grips Force Gauge Jig GC-50

Shimpo Wedge Grips Force Gauge Jig GC-50 Ordering Guide:



型式 / Product number GC-50
 試験方向 / Operating direction 引張り / Pulling
 許容荷重 / Maximal load 500N
口幅 / Mouth width
8mm
 開き幅 / Open width 0~4mm

 取付可能フォースゲージ

Compatible With All Shimpo Force Gauge

FGx-1~100
 質量 / Weight Upper side: about 200g
Lower: about 470g



Harga Shimpo Wedge Grips Force Gauge Jig GC-50

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
