Untuk mendapatkan informasi lebih lengkap tentang:

Shimpo Portable Stroboscope DT-315N

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Shimpo's pistol-grip Stroboscope DT-315N is devised by Nidec-Shimpo to simplify the measure of revolutions, velocity and frequency of rotating components or moving parts especially towards fast moving and flowing object. The DT-315N is heavy duty, battery powered stroboscope possesses the same great features of the DT-311A with the added convenience of total portability via its own internal power supply. The quick recharge battery lasts up to four hours of full continuous usage with its high intensity flash rate.

The device provides a wide measuring range from 40.0 to 35,000 rpm. These features make the DT-315N ideal for quality inspection and preventitive maintenance of automated motion equipment. The DT-315N provides power flexibility by utilizing either its rechargeable internal, batteries or AC line-power when plugged into the included AC adapter/charger unit. These features make the DT-315N ideal for quality inspection and preventitive maintenance of automated motion equipment.



Shimpo Stroboscope DT-315N Features:

  • Internal, fast-charge rechargeable battery supply
  • Aluminum construction provides exceptional durability
  • High polish and focused reflector eliminates “blind” viewing areas
  • External trigger allows unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • High accuracy ( ±0.01% of reading ) is ideal for QC inspection and process control
  • Synchronous output enables strobe to drive other strobes
  • Flash timer control conserves flash tube life
  • Easy tri-pod or permanent mounting with integral mounting thread



SPESIFIKASI Shimpo Portable Stroboscope DT-315N

 Shimpo Stroboscope Shimpo DT-315N Details:


Model Shimpo DT-315N
Flashing Range 40.0 – 35,000 fpm (flashes per minute)
Accuracy ±0.01 % of reading
Resolution 0.1 fpm: 40.0 – 5,000 fpm
0.2 fpm: 5,001 – 8,000 fpm
0.5 fpm: 8,001 – 10,000 fpm
1 fpm: 10,001 – 35,000 fpm
Phase Shift Use +/- push buttons (360° in 6 seconds)
Display Update Time 0.2 sec approx
Output Signal Synchronous, 400 μsec. Pulse output, 0 to +12 VDC amplitude(approx.), 4.7 KΩ impedance
Rate Multiplier/Divide 0.0 to 35,000 fpm
Flashing Range Synchronous Mode: 60.0 ~ 3,000FPM / Delay mode:200 ~ 3,000 FPM
External Mode Accuracy ±0.01 % ±1 digit
Phase Shift 0 to 359° with 1° resolution
Delay Time 0 to 2,000 mSec from 40 – 10,000 fpm
External Trigger Input Signal LO level: 0 -0.8 VDC, HI level: 2.5 – 12 VDC or open collector (NPN),pulse width 50 μsec min.
Input Impedance 4.7 KΩ to 12 V / 6.8 KΩ to 0 V
Display 5 digits, 0.4” (10 mm) high, LED
Flashtube Power/Life Xenon, 10 W max. (100 million flashes)
Flash Duration 10 to 40 μs automatically adjusts with flash rate
Lux Rating 8” (20 cm) Distance = 4500 lx @ 1500 fpm, 3375 lx @ 6000 fpm with 4.5” (110 mm) irradiation diameter.
20” (50 cm) Distance = 1300 lx @ 1500 fpm, 930 lx @ 6000 fpm with 10” (250 mm) irradiation diameter.
Sensor Power Supply 12 VDC (40 mA)
Low Battery Indicator Display shows all L’s
Battery Life 1 – 2 hours depending on flash rate
Power Requirement Rechargeable Battery or AC Line Power with included AC adapter
Operating Temperature 32° – 104°F (0 – 40°C)
Dimensions 9.84” L x 4.72” W x 4.72” H (250 mm x 120 mm x 120 mm)
Product Weight 4.4 lbs (2 kg)
Package Weight 5.5 lbs (2.49 kg)
Included Accessories AC charger/adapter, flash tube removal tool, handle



Shimpo Heavy-duty Stroboscope DT-315N Ordering Guide:


DT-315N Heavy duty, rechargeable battery powered stroboscope
DT-315N-230V Same as DT-315N except with 230V power
NIST-STROBE NIST traceable certificate for digital stroboscopes, includes data

 Shimpo Stroboscope Shimpo DT-315N Optional Accessories:


BAT-DT315N/P-ASSY Internal, rechargeable battery assembly for DT-315N
DT-315CHARGER AC adapter/charger for DT-315N
CARRYING-CASE Carrying Case for DT-315N
FLASHTUBE-311-2 Replacement flash tube for DT-315N
CABLE-311-10FT Input/output cable for DT-315N

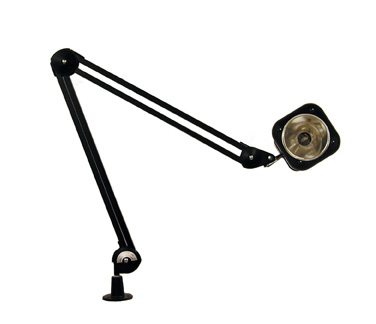

SAS-DT300 Permanent mount swing arm

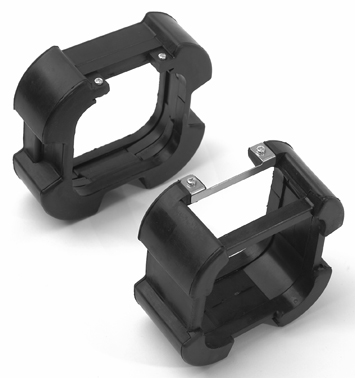

SG-300 Rubber strobe guard for DT-315N
LS-S50MLR-DT311 Laser sensor with NPN/PNP (NO,NC) outputs, 1.5 kHz frequency, LED indication, DT-315N Connector Cable, NEMA 6 (IP67) rating
