The Shimpo Portable Stroboscope DT-725 offer many of the same features as the famous DT-300 Series Stroboscopes, but are lighter in weight. Constructed of strengthened high impact plastic, these rugged units are exceptionally reliable and withstand the same harsh conditions as more expensive units. Employing its unique phase shifting feature, the DT-725 “freezes” rotating or reciprocating machinery for visual inspection of covered gear teeth, shafts, oil/fuel/ink injector patterns, and print media; all without stopping production. Shimpo Portable Stroboscope DT-725 is delivered with NIST traceable certificate for digital stroboscopes, includes data

These features make the DT-725 ideal for quality inspection and preventive maintenance of automated motion equipment. Units can be ordered separately or as a convenient kit. This affordable stroboscope has adjustable flash duration to feature a clearer stopped image and is ideal for monitoring repetitive processes such as on high-speed printing lines and packaging automation queue. The application of Shimpo DT-725 includes: speeds or inspection of rotors, meshing gears, vibration diagnostic equipment, textile equipment, packaging line, bottling-filling automation queue, printing production lines, power tools, speaker acoustical analysis, motor-propeller balancing and many more.



Shimpo Portable Stroboscope DT-725 Features:

  • Bright LED Display Aids viewing in poorly lit areas
  • Light Weight Design
  • External trigger allows unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • Easy adjust flash rate controller dial
  • Synchronous output enables strobe to drive other strobes
  • Easy tri-pod or permanent mounting with integral mounting thread
  • Internal, fast-charge rechargeable battery supply



SPESIFIKASI Shimpo Portable Stroboscope DT-725

Shimpo Stroboscope DT-725 Portable Details:


Model Shimpo DT-725
Flashing Range 40.0 – 12,500 fpm (flashes per minute)
Accuracy ±0.02 % of reading
Resolution 0.1 fpm: 40.0 – 4,999.9 fpm
0.2 fpm: 5,000 – 7,999.9 fpm
0.5 fpm: 8,000.0 – 9,999.5 fpm
1 fpm: 10,000 – 12,5000 fpm
Phase Shift Use +/- push buttons (360° in 6 seconds)
Display Update Time Ext. mode : varies with flashing rate
Output Signal NPN open collector (24 VDC max., 50 mA), 150 μsec typical
Rate Multiplier/Divider Multiply by 2, divide by 2
External Trigger Input Signal a) 12 – 24 VDC thru a 3-wire NPN output sensor (requires external power
b) 12 VDC thru a 2-wire proximity sensor (leakage current 1 mA max., load current 8 mA min.)
c) Switch or relay contact
Display 5 digits, 0.3” (8 mm) high, LED
Flashtube Power/Life Xenon, 10 W max. (100 million flashes)
Flash Duration 10 to 15 μs automatically adjusts with flash rate
Lux Rating 8” (20 cm) Distance = 5500 lx @ 1500 fpm, 8400 lx @ 6000 fpm with 4.5″ (110 mm) irradiation diameter.
20” (50 cm) Distance = 1650 lx @ 1500 fpm, 2200 lx @ 6000 fpm with 7″ (178 mm) irradiation diameter.
Low Battery Indicator Flashing LED
Battery Life 1 – 2 hours depending on flash rate
Power Requirement 115 VAC or 220 VAC ±10 % 60/50 Hz / Internal battery pack
Operating Temperature 32° – 104°F ( 0 – 40°C )
Dimensions 7.28” L x 4.72” W x 4.72” H (185 mm x 120 mm x 120 mm)
Product Weight 2.75 lbs (1.25 kg)
Package Weight 4.45 lbs (2.02 kg)
Included Accessories AC adapter



Shimpo Stroboscope DT-725 Portable Ordering Guide:


DT-725 Portable, Light Weight Stroboscope with Rechargeable Battery
DT-725-230V Same as DT-725 with 230 VAC power

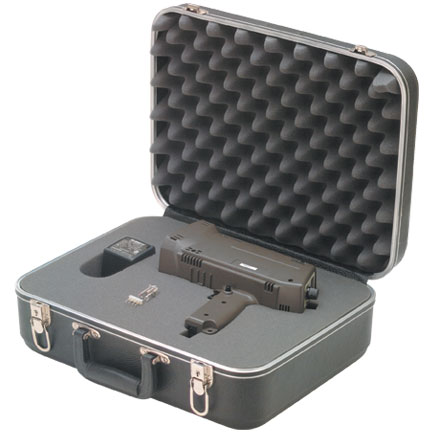

DT-725KIT Same as DT-725 with added battery charger, spare flash tube, protective carrying case
DT-725KIT-230V Same as DT-725KIT with 230VAC power
NIST-STROBE NIST traceable certificate for digital stroboscopes, includes data



Shimpo Stroboscope DT-725 Portable Optional Accessories :


CARRY-CASE721 Protective carrying case for DT-725
DT-12V120 Charger/Adapter for DT-725, 120 VAC power
DT-12V230 Charger/Adapter for DT-725, 230 VAC power
FLASHTUBE721 Replacement flashtube for DT-725
SAS-DT300 Flexible swing arm
