Shimpo Stroboscope ST-320BL Black Light LED Set are devised by Nidec-Shimpo to simplify the measure of revolutions, velocity and frequency of rotating components or moving parts especially towards the object with fluorescent or light reflective properties. The Shimpo LED Stroboscope series lay an important role in the study of stresses on machinery by measuring its motion, quality control and research. Shimpo Stroboscope ST-320BL Black Light LED can be used extensively in non-destructive testing. Fluorescing fluids are applied to metal structures and illuminated with a black light which allows cracks and other weaknesses in the material to be easily detected. Shimpo Stroboscope ST-320BL Black Light LED can also be used as integrated part counter in automation system.

Shimpo Stroboscope ST-320BL Black Light LED is a portable or permanent mount stroboscope. Utilizing super bright high-powered black light CREE LED lamps, Shimpo Stroboscope ST-320BL Black Light LED are perfect for UV ink printing applications. Shimpo Stroboscope ST-320BL with its LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Operation is simple with the 8 button keypad and quick rate adjustment dial, combined with large, backlit LCD display. Phase shift, flash duration, plus flash rate are all quickly adjustable. The Shimpo Stroboscope ST-320BL Black Light LED can work off user adjusted flash frequency or from a remote sensor’s signal which will automatically adjust to corresponding process fluctuations.

The Shimpo Stroboscope ST-320BL Black Light LED is designed for speed and frequency measurements in the printing, glossy packaging, textile, automotive, cable, mining, steel, translucent chemical, optical and medical industries in various applications.

Shimpo Stroboscope ST-320BL Black Light LED Features:

  • Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
  • Long-life Black Light LED operation for UV ink applications
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
  • 1/4-20 UNC connection for permanent mount applications (remove trigger handle)



SPESIFIKASI Shimpo Stroboscope ST-320BL Black Light LED

 Shimpo Stroboscope ST-320BL Black Light LED


Model ST-320BL
Flash Rate Range 60 to 120,000 FPM; 1-2000 Hz
Accuracy 0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime Approximately 3~5 years depending on usage
Display Backlit LCD
Resolution 60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 1~200 HZ = 0.01 Hz; 201~2000 = 0.1 Hz
Flash Duration 0.1°- 2.5°
Phase Shift 0-359°
Power Requirement ST-320BL-1: 100-120 VAC (230V available upon request); ST-320BL-2: Rechargeable Battery with 100-240VAC power adapter.
Battery (ST-320BL-2) Lithium DC 10.8V 2000mA
Battery Life (ST-320BL-2) Approx. 12 hrs depending on settings
Input Signal 12 V Pulse Input; 3 pin M-12
Input Signal Range 60-120,000 FPM (1-2000 Hz)
Input Pulse Width Over 50 μs
Input Signal Flash Delay 0-999 ms; 0-359°
Temperature Limits 32-95°F (0-35°C)
Humidity Limits 35 to 85% RH
Enclosure Aluminum & ABS
Mounting 1/4-20 UNC Thread
Enclosure Rating IP54
Product Weight ST-320BL-1: 1.85 lb (0.84 kg); ST-320BL-2: 1.98 lb (0.90 kg)
Package Weight ST-320BL-1: 4.40 lb (2.0 kg); ST-320BL-2: 5.73 lb (2.6 kg)
Approvals CE

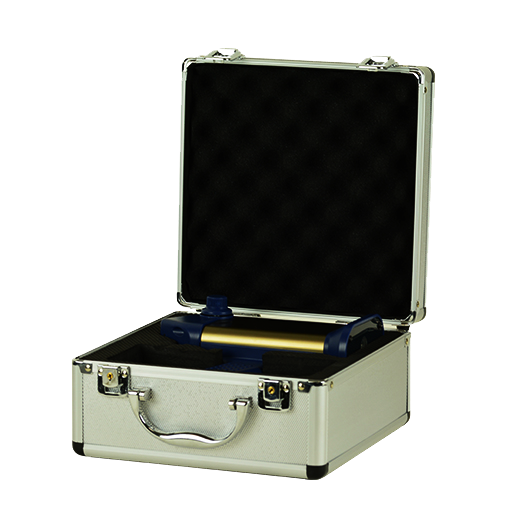

Included Accessories Carrying Case, ST-320BL-1: 6.5’ (2 m) AC power cord; ST-320BL-2: Power Recharging Adapter with cord



Shimpo Stroboscope ST-320BL Black Light LED  Ordering Guide:


Model Description
ST-320BL-1 Portable Black Light LED Stroboscope, 100-120 VAC Line Powered.
ST-320BL-1-230V Portable black light LED Stroboscope, 220 -240 VAC line powered
ST-320BL-2 Portable Black Light LED Stroboscope, Rechargeable Battery with 100-240VAC power adapter.



Shimpo Stroboscope ST-320BL Black Light LED  Optional Accessories:


Model Description
SG-320BL Front Rubber Strobe guard for ST-320BL
ST320HANDLE Top Handle for ST-320BL
E2E-X5ME1-Z Proximity sensor with M-12, 3 pin connection
