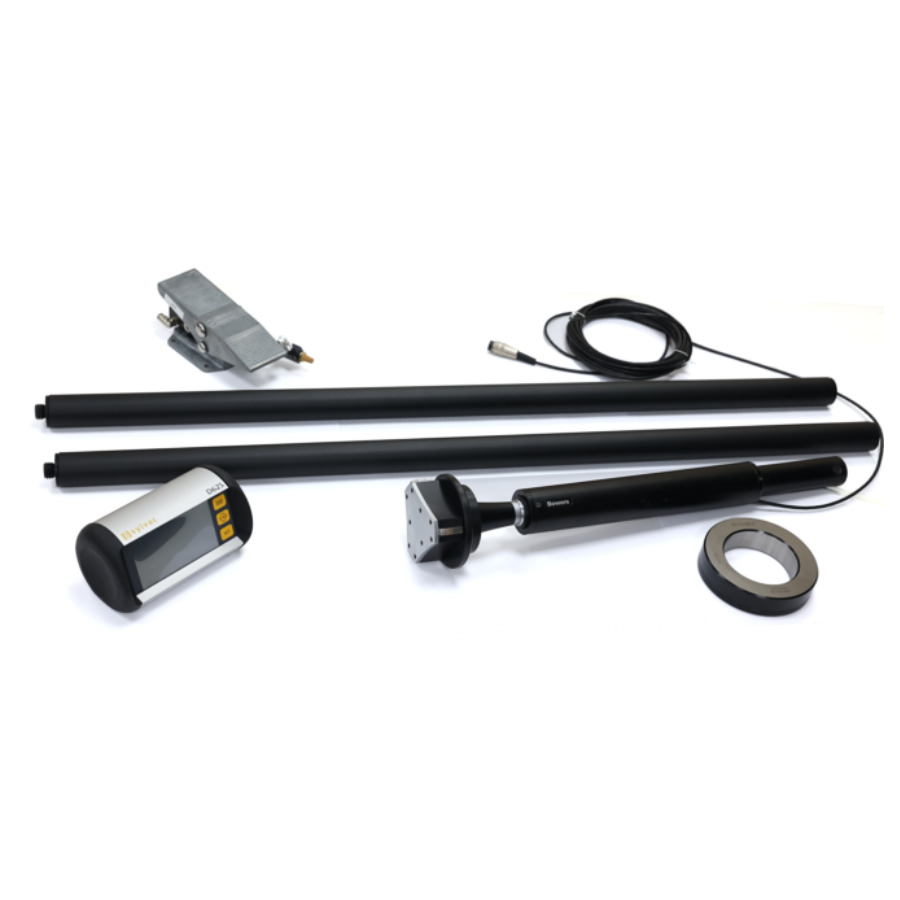

Bowers Digital Lever Bore Gauge XTL Series

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

The versatile Bowers Digital Lever Bore Gauge XTL Series are optimized for vertical bore measurement with repetitive precision. Bowers Digital Lever Bore Gauge XTL Series are providing accurate displays suitable either for bore gauging under inspection department or shop-floor conditions. Bowers Digital Lever Bore Gauge XTL has a practical ergonomic action and can be fitted with wide variety of analogue and digital indicators or even transducer probes. The Bowers Digital Lever Bore Gauge XTL can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A 'wireless' gauge module is also available, enabling cable free communication with remote data storage or PC for quality inspection and adds up the versatility of workpiece that you can work with.

Bowers Digital Lever Bore Gauge XTL has a hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 100mm. Bowers Digital Lever Bore Gauge XTL is affordable investment in measuring vertical bores, combustion chambers, pipes, cylindrical exhaust system and inner tubes with full support of 1 year warranty and sets of certificate for your ultimate precision.



Bowers Digital Lever Bore Gauge XTL Series Features:
• Measuring range 6-100mm (diameters above 100mm on request)
• Excellent for vertical bore measurement.
• Simple 2-button operation.
• Large easy-to-read swivel display (20-100 sizes only)
• 2 preset memories.
• RS-232C output.
• Self-entering heads.
• Constant measuring pressure.
• Fast, accurate measurement.
• Resolution 0.001mm (0.00005")
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm.
• Blind bore measurement above 12.5mm (0.500")
• Extensions available above 6mm for deep hole measurement.
• Setting rings included with individual instruments and sets.
• UKAS certificates supplied as standard with all setting rings.
• UKAS certificates supplied with all gauges.
• Serial number on all gauges and measuring heads.
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN863, part4.
• Bluetooth indicator option available over 20mm.

SPESIFIKASI Bowers Digital Lever Bore Gauge XTL Series

Bowers Digital Lever Bore Gauge XTL Series Ordering Guide:


Code No.Range (mm)Accuracy (mm)Depth (mm)Setting Ring (mm)
XTL6M 6-8 0.004 58 8.00
XTL8M 8-10 0.004 58 8.00
XTL10M 10-12.5 0.004 58 12.50
XTL12M 12.5-16 0.004 62 12.50
XTL16M 16-20 0.004 62 20.00
XTL20M 20-25 0.004 66 20.00
XTL25M 25-35 0.004 66 35.00
XTL35M 35-50 0.004 80 35.00
XTL50M 50-65 0.005 80 65.00
XTL65M 65-80 0.005 80 65.00
XTL80M 80-100 0.005 85 80.00
