Bowers 3-point Bore-Gauge XT500 Series

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

The Bowers XT500 large diameter 3-point bore-gauge is designed by Bowers together with Sylvac for optimized measurement of internal diameters anywhere in between 300 to 500mm. Improved with newly designed constant-force digital readout, Bowers 3-point Bore-Gauge XT500 ensures that the measuring pressure remains constant within 15 µm of accuracy throughout the measurement whilst radiussed measuring anvils provide optimum centralisation in the part.

This clever 3-point pivotal design along with IP67 certified electronics, particularly suited when measuring bores, tube, grooves or pipes with 3 µm repetitive accuracy in any angle whether vertical, horizontal or angular inspection on your industrial floor. Furthermore, the Bluetooth technology embedded in the electronics allow you to record the measurement data neatly on spreadsheet software and smartphones within 20 meter of radius.

Bowers 3-point Bore-Gauge XT500 have  sets of sensitive anvil which are supplied in 25mm steps (300-325, 325-350 etc). Each Bowers 3-point Bore-Gauge XT500 anvil set has been manufactured to the exact toleranced size. The 300-325mm anvils are the master reference set and are used for setting the gauge in the setting ring. The other anvil sets are then fitted as required without further re-setting. This means that Bowers 3-point Bore-Gauge XT500 only need one 300mm setting ring required to set the gauge for all diameters in the full 300-500mm range of the instrument.

Your investment on Bowers 3-point Bore-Gauge XT500 will be paid off quickly as you are working with highest precision demanded in fabrication and refurbishing of combustion chambers, oil and gas pipes and tubes, aerospace, pneumatic chambers, mechatronics and many more.



Bowers 3-point Bore-Gauge XT500 Series Features:

  • Measuring range: 300-500mm
  • New constant-force digital readout
  • Single 300mm setting ring covers full range

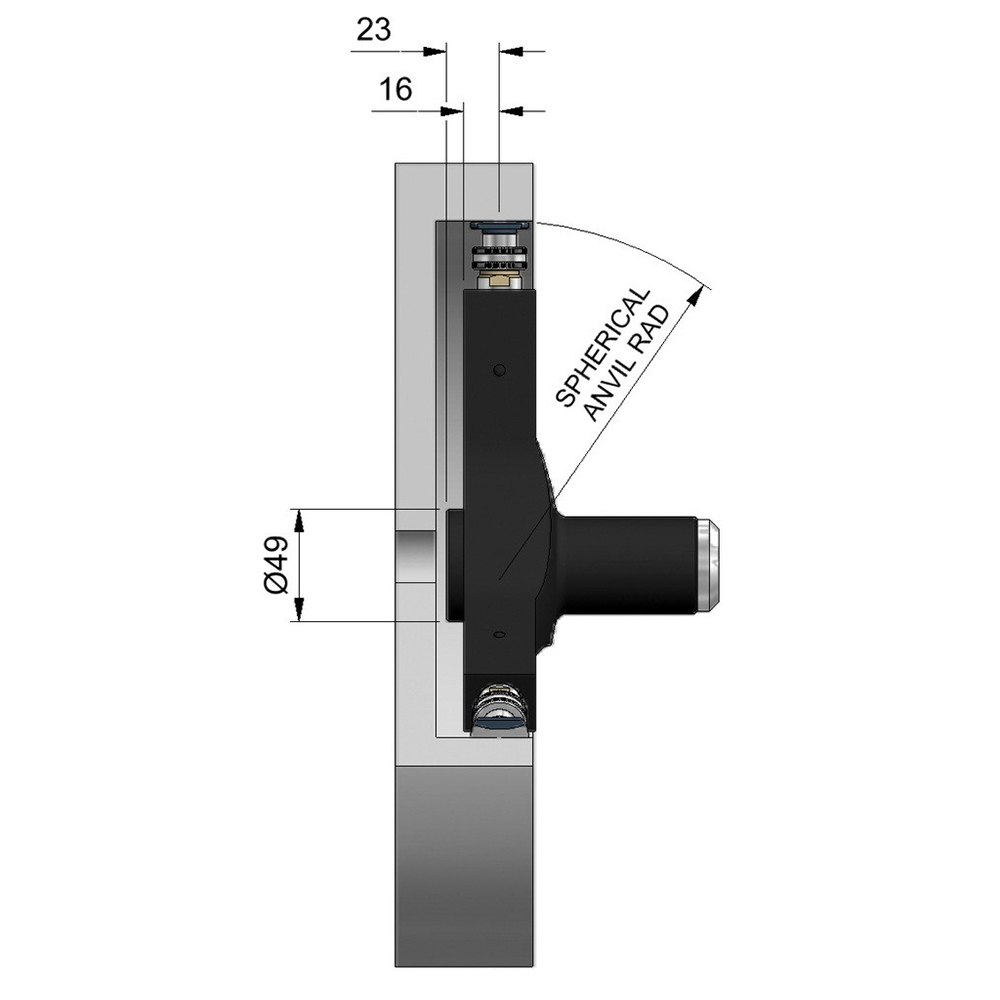

  • Radiussed anvils of tool-steel for optimum centering
  • Accuracy: 15µm
  • Repeatability: 3µm
  • Bluetooth data transfer ready
  • IP67 electronics
  • RS232 output
  • Resolution 0.01/0.001mm. Metric/inch switchable
  • Fast accurate measurement
  • Extensions available for deeper bores
  • UKAS certificate with setting ring
  • Certificate of conformity with bore gauge
  • Supplied in fitted case



SPESIFIKASI Bowers 3-point Bore-Gauge XT500 Series

Bowers 3-point Bore-Gauge XT500 Series Ordering Guide:


Code No.Range (mm)
SXT3000M-XT3 300-400
SXT4000M-XT3 300-325, 400-500
SXT5000M-XT3 300-500



Bowers 3-point Bore-Gauge XT500 Wider Ranges Ordering Guide:


Code No.Range (mm)Depth (mm)Setting Ring (mm)
XT5001M-XT3 300-325 120 300
XT5002M-XT3 300-325, 325-350 120 300
XT5003M-XT3 300-325, 350-375 120 300
XT5004M-XT3 300-325, 375-400 120 300
XT5005M-XT3 300-325, 400-425 120 300
XT5006M-XT3 300-325, 425-450 120 300
XT5007M-XT3 300-325, 450-475 120 300
XT5008M-XT3 300-325, 475-500 120 300
