Bowers Digital Bore Gauge XT3 Series

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

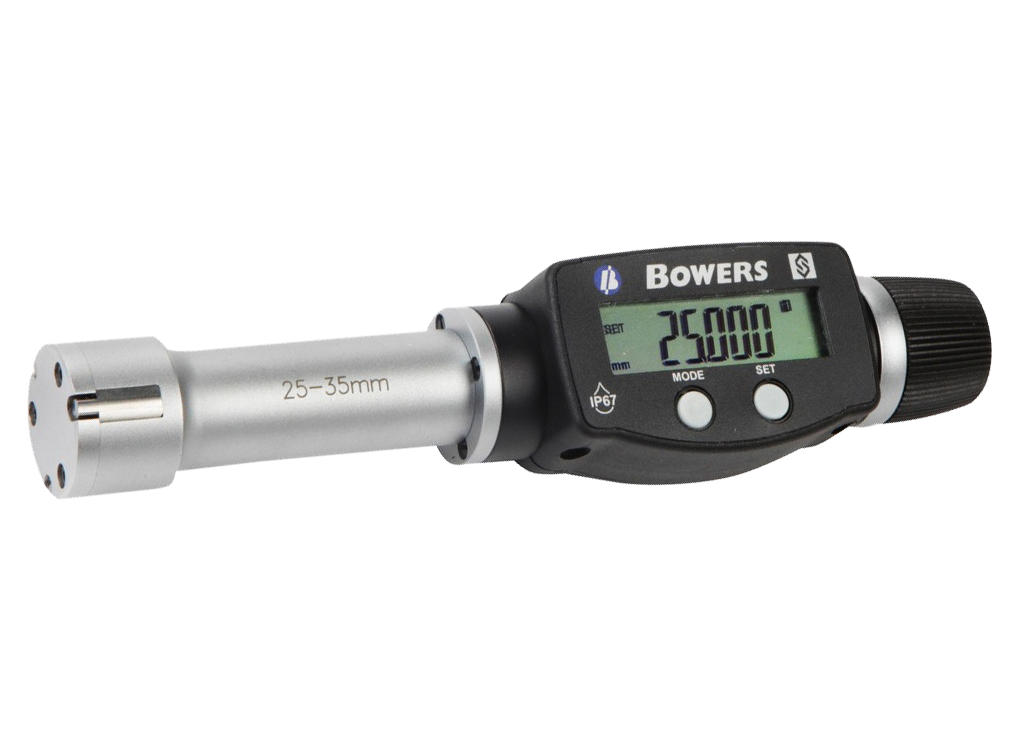

Bowers Digital Bore Gauge XT3 Series are devised for your convenient application in the process of accurately measuring internal diameter of holes. Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Bowers XT3 Digital Bore Gauge Series have wide variations of measuring heads for threads, splines, slots, grooves, deep-holes and many more applications.

Bowers XT3 Digital Bore Gauge is the finest investment on measuring internal diameter. You can use its RS-232 or USB connectivity optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. Thanks to its IP67 certified electronics, your operator can now works on various worksite against water-humidity, sea water moist and direct exposure of dust. Bowers Digital Bore Gauge XT3 is highly regarded by many fabricators of industrial pipes, tubes, automotive workshop, internal pipe coating and fully customized barrel for defense-military industry.



Bowers XT3 Digital Bore Gauge Series Features:
• New ergonomic design with larger and clearer LCD display
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)
• Bi-directional communication
• Range 2-300mm (0.080”-12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4

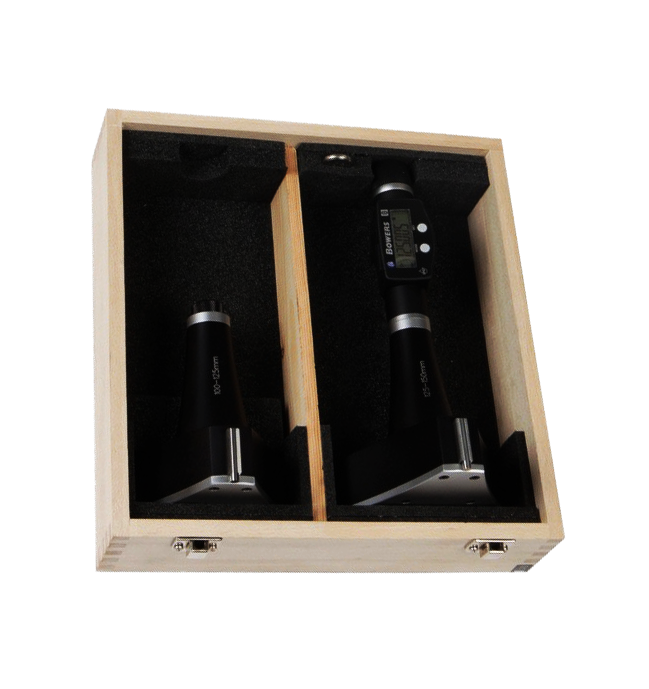

• Supplied in fitted wooden case.

SPESIFIKASI Bowers Digital Bore Gauge XT3 Series

Bowers XT3 Digital Bore Gauge Series


Code No.Range (mm)Accuracy (mm)Depth (mm)Setting Ring (mm)
XTD1M-XT3 2-2.5 0.004 9 2.50
XTD2M-XT3 2.5-3 0.004 9 2.50
XTD3M-XT3 3-4 0.004 12 4.00
XTD4M-XT3 4-5 0.004 18 4.00
XTD5M-XT3 5-6 0.004 18 5.00
XTD6M-XT3 6-8 0.004 58 8.00
XTD8M-XT3 8-10 0.004 58 8.00
XTD10M-XT3 10-12.5 0.004 58 12.50
XTD12M-XT3 12.5-16 0.004 62 12.50
XTD16M-XT3 16-20 0.004 62 20.00
XTD20M-XT3 20-25 0.004 66 20.00
XTD25M-XT3 25-35 0.004 66 35.00
XTD35M-XT3 35-50 0.004 80 35.00
XTD50M-XT3 50-65 0.005 80 65.00
XTD65M-XT3 65-80 0.005 80 65.00
XTD80M-XT3 80-100 0.005 100 80.00
XTD100M-XT3 100-125 0.006 115 125.00
XTD125M-XT3 125-150 0.006 115 125.00
XTD150M-XT3 150-175 0.007 115 175.00
XTD175M-XT3 175-200 0.007 115 175.00
XTD200M-XT3 200-225 0.008 118 225.00
XTD225M-XT3 225-250 0.008 118 225.00
XTD250M-XT3 250-275 0.009 118 275.00
XTD275M-XT3 275-300 0.009 118 275.00
