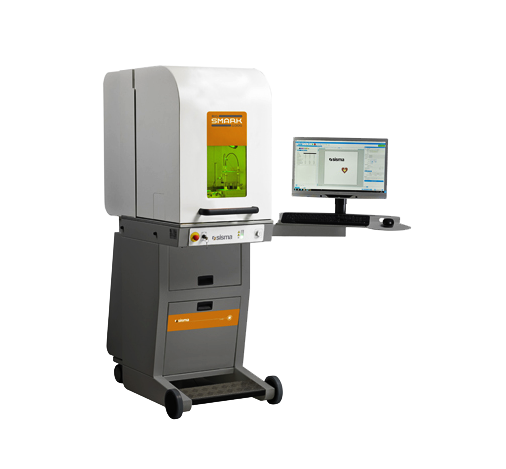

  4. Sisma Laser Marker BIG SMARK BSP 200F - 700F

Untuk mendapatkan informasi lebih lengkap tentang:

Sisma Laser Marker BIG SMARK BSP 200F - 700F

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Sisma's BIG SMARK marking laser machine innovates the industry with 3 axis marking technology to provide versatile precision engraving or deep marking machine without worrying how to secure the workpiece in place. Engineered with additional vision system, you can have an increased functionality of engraving, marking and micro-cutting to meet the highest technical standards available. There are 6 models of different wattage to choose from so that you can have a beautifully accurate marking far superior than than a CO2 laser machine. Your company can freely design any type of logo, do micro cutting, barcode marking, classic peen marking relief or any tagging picture on graphic editing software and do engraving directly from its practical computer software as convenient as using a regular paper printer. The software is also compatible with: Svg, Dxf, Hpgl, Bmp and Jpg formats.

Your investment on Sisma's innovative BIG SMARK will help you to unlock higher margins and forget all the headache on previously consumable marking and hazardous chemical etching routine. Thanks to its class IV laser source level, you can have a concentrated heat source with narrower and faster marking rates than comparable laser brands. The laser source works by utilizing Fiber Ytterbium laser beam which emit light with a wavelength of 1064µm (10x smaller diameter compared to Co2 marking laser). Door lid opens on 3 sides to facilitate access, wide work chamber (500x500 mm), maximum height of piece 530 mm (F100) and can be attached with all Sisma accessories.

Sisma BIG SMARK 200F - 700F works very well for engraving logo or initial on stainless workpiece, marking barcode on CNC product, cutting thin plate of hard metal, mould and die making, luxurious marine and consumer equipment, plumbing and lux faucet, name plates or manufacturing batch plate, and various other relief making application on any type of metal and composite surface. With Sisma's BIG SMARKY, you can now focus more on design and winning projects to satisfy even the most demanding clients instead.



Sisma Marking Laser BIG SMARK 200F - 700F OEM Features:

  • Optimized for stainless steel engraving, jewellery, precious minerals and tougher metallic surface.
  • Cleaner working environment with fine finishing, no need for futher abrasives.
  • Much safer and practical compared to regular milling with mixed qualities which followed by hazardous chemical etching & engraving.
  • Using the market's highest class IV laser source technology which produce seamless marking surface.
  • PLC interface, data network (ethernet), digital I/O
  • Manually adjusted Z shaft distance for larger object.
  • Includes intuitive software compatible with small to medium scale application.
  • Enclosed system and sealed laser source for minimal maintenance.
  • Suitable for production line which requires high quality marking on medium volume application.
  • Non consumable application unlike Co2 laser marking machine.
  • Object stage can be attached with vise, XY table and micrometer stage.
  • Can also be supplied with cooling panel for much efficient operation



Sisma Marking Laser BIG SMARK 200F - 700F OEM optional accessory:

  • High precision rotary axis, static clamping device.
  • Ragging system with winder, dynamic measuring device,
  • Fumes aspirator.



SPESIFIKASI Sisma Laser Marker BIG SMARK BSP 200F - 700F

Sisma Laser Engraving Series Ordering Guide:


TECHNICAL DATA

200F

200F EP

300F

400F

500F

700F

Average Output Power [W]

20

20

30

40

50

70

Wave lenght [nm]

1064 nm

Laser Technology

Yb

Repetition Rate Range [KHz]

1-500

1-1000

1-500

1-1000

1-500

1-500

Pulse Width [ns]

260/40

3-500

260/40

10-240

250/40

260/40

Max Pulse Energy [mJ]

1/0,21

0,03-1

1/0,21

0,16-1,33

1/0,21

1/0,21

M2 ≤

1,6

1,6

1,6

3,5

1,6

1,6

Guide Laser

Class 2M Red Laser Diode; λ=650 nm; 2 mW

Temperature Range

Operative 10°C to 35°C, non condensing

Cooling System

Forced-aired cooling

X-Y axis stroke [mm]

300

Z axis stroke [mm]

360

4th axes

optional

Focal

F100, F160 (std), F254, F330

Power supply

230V, 50/60 Hz 1ph - 1KW

Working area

300x300x280 h mm

Dimensions (L x P x H)

775x1088x1800 mm

1500x1088x1800 mm with monitor support

Weight

500 Kg


Notes:

Constant ray of laser may result in higher temperature and affect the performance. Better circulation of cold air and fumes respirator are advised with pulsed mode operation for a much efficient approach. When you are using the machine with longer working time, make sure to install additional cooling panel to avoid unnecessary down time.

However, if you are looking for much affordable alternative for marking laser on smaller range, you might also wants to consider Sisma Marking Laser LOGO Series, or if you would like a mould repair laser welding unit, you can opt for Sisma SWA mold repair specialist.
