  5. Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26

Untuk mendapatkan informasi lebih lengkap tentang:

Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

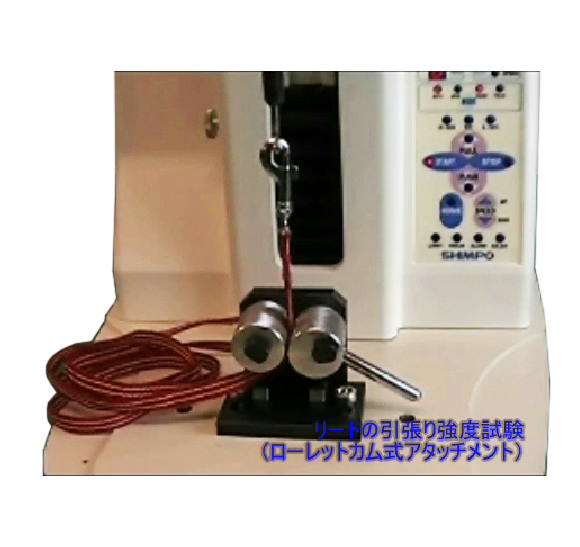

Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26 is devised for firmly holding a test specimen with up to 250 Newton of force, which are suitable for pull force on electric wires, solderless terminal, welding tap joint, steel strings, Nylon string, elastic belt, animal hide and pelt, cable insulator, wiring tapes, stationary tape, retardant sealant or just about any material which has the visco-elastic properties such as polymers, elastomers, and rubbers within a the touch of a lever. This Knurled Cam-Type mechanism allows any digital or analog force gauge to run a precision testing of pull combination with either motorized-programmable force test or with manual pulling stand combination.

You can also clamp the lower end part of the specimen with regular locking vise while using this compact clamping attached to the force gauge's connecting pin. Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26 is highly recommended for any Shimpo force gauge or any brands on your current workbench. Depend on your budget, you can also order this durable clamp with either manual hand-crank lever stand or Shimpo motorised digital stand as well. However if you are considering a clamp with 500 Newton of force is appropriate, you might also wants to consider Shimpo Wedge Grips Force Gauge Jig GC-50.



Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26 features:

  • The self-tightening mechanism with a knurled cam effect firmly holds the test piece up to 250 Newton.
  • The test piece can be easily attached and removed with one touch, thus allowing efficient operation.
  • Compatible gauge attachement with all Shimpo force gauge such as FGJN-1～50, FGP-1～50 and FGPX-1～50.
  • Suitable tensile rupture tests on material with visco-elastic properties and many more.



SPESIFIKASI Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26

Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26 Ordering Guide:


型式 / Product number FGTT-26
　試験方向 / Operating direction 引張り / Pulling
　許容荷重 / Maximal load 250N
口幅 / Mouth width 16mm
　開き幅 / Open width 0～4mm

　取付可能フォースゲージ

Compatible With All Shimpo Force Gauge

 FGJN-1～50
FGP-1～50
FGPX-1～50　
　質量 / Weight 150g



Harga Shimpo Knurled Cam-Type Force Gauge Jig FGTT-26

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
