SIC Marking e10 p63 Portable Dot Peen Marking Machine

Segera Hubungi Kami :

(62) 778 408 6403


SPESIFIKASI SIC Marking e10 p63 Portable Dot Peen Marking Machine

Mechanical Features

Marking Window: 60 x 25 mm
Dimensions: 260 x 139 x 211 mm
Weight: 3.2kg (7.5 lbs.)
Robotic Cable: 7.5m (up to 15m available)
Stylus: Carbide 60 mm
Stability: V-Shaped Front with Anti-Slip Surface
Lighting: LEDs
Setup Positioning: Adjustable Memory Front Plate


Electronic Features

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded from a PC to the controller using a USB key or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user-friendly machine.

Dimensions: 322 x 380 x 112 mm
Weight: 5 kg
LCD Screen Resolution: 480 x 272 p.
Keyboard: QWERTY-Integrated, Membrane Overlay
Power: 300 watt
Power Supply: Single Phase (85 to 260VAC, 50-60Hz)
Number of Controlled Axis: 2 (3 and 4 axis available)
Card Options:

Booster (deep marking)

Ethernet (communication)

USB Port: Transfer of Marking Files


Steering Software

Marking Files:

More Than 2000


7110 Ko

Alphanumeric Characters:

Serial Number, Date Coding


Creation from PC software


Up to 348 Characters, 48 x 48 dots


Arial, Courier, OCR, and OCRA


Angular, Radial, Inverse, and Mirror


Up to 5 Characters Per Second

Character Size:

From 0.1 mm to 99 mm

Impact Force:

9 Adjustable Levels


Up to 0.5 mm

Resolution Between Dots:

0.05 mm

Maximum Stylus Stroke:

Up to 8 mm

Work Shift Management:

10 shifts

Password Protection:

3 Security Levels

Historical Function:

Password Protected

Maintenance Assistance:

Auto-Diagnostic Component

Languages Available:





RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board



External keyboard input:


External output:

5V-0.5A and 24V-0.5A


Creation and Transfer Software

File Backup on PC:

USB Key for Transfer

Database Link:


Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

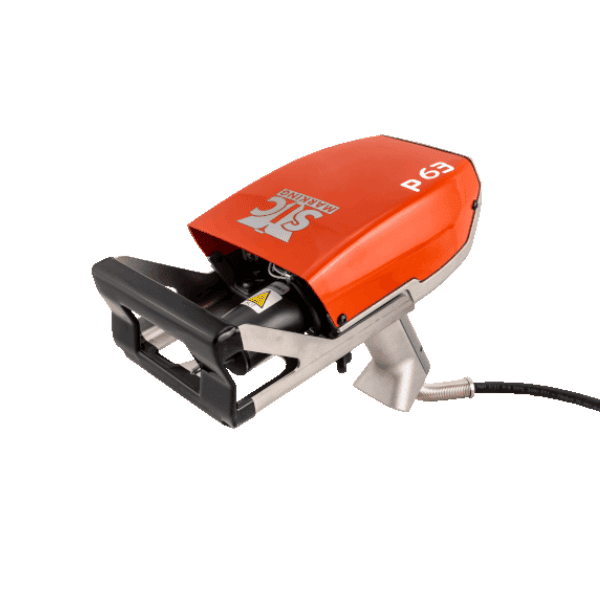

The p63 is a portable, handheld dot peen marker designed for use with the e10 controller. Its lightweight portability makes it ideal for marking large, difficult-to-access parts, and its arched front plate allows for sturdy marking on both flat and cylindrical surfaces. Capable of marking plastics and metals (up to 62HRC), the rugged cast aluminum body, ABS cover, and stainless-steel front plate make the p63 a mobile, lightweight, and reliable tool. The marking pin is solenoid actuated and requires minimal maintenance and no air supply system.


  • Portable Versatility
  • Superior Performance and Consistency
  • Low Cost of Ownership
  • Robust and Powerful
