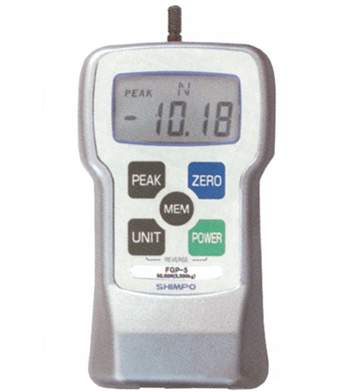

SHIMPO Force Gauge FGP Series is devised for high-performance digital force gauge which are capable of measuring the pressing force, tensile force, and peel force from 2 Newton up to 1000 Newton of force. This compact force gauge is equipped with aluminium enclosure for durability and excellent attachement on various type of stand.

Work applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more. However, if you are looking for a much versatile force gauge with multi port connectivity which is needed on your current Mitutoyo rig, you might also wants to consider Shimpo Force Gauge FGPX Series.



SHIMPO Force Gauge FGP Series features:

  • High-speed sampling measurement with sampling rate of 1000 times per second
  • SHIMPO Force Gauge FGP Series equipped with three memory modes function of continuous memory, single memory, standard memory
  • SHIMPO Force Gauge FGP Series have memory capacity; 1000 data in continuous memory mode
  • USB communication feature collect and transfer data to any PC with an industry standard USB interface.
  • Transfer data to Excel Add-in software "Toriemon USB" enables data collection at 100 times per second. Efficiently edit the data on the PC. You can download""Toriemon USB"" from our website free of charge
  • Comparator function Built-in comparator function with upper limit and lower limit value settings. Pass-fail (Yes/No) judgment of the measurement value can be made.



To serve your interest on SHIMPO Force Gauge FGP Series,

Kindly contact our sales department.

SPESIFIKASI SHIMPO Force Gauge FGP Series

SHIMPO Force Gauge FGE Series Ordering Guide:

Model

FGP-0.2

FGP-0.5

FGP-1

FGP-2

FGP-5

FGP-10

FGP-20

FGP-50

FGP-100

Capacity(R.C.)

±2.000N
(±200.0g)
(±0.5lb)
±5.000N
(±500.0g)
(±0.1lb)
 ±10.00N
 (±1000g)
 (±0.2lb)
 ±20.00N
 (±2.000kg)
 (±5lb)
 ±50.00N
 (±5.000kg)
 (±10lb)
 ±100.0N
 (±10.00kg)
 (±20lb)
 ±200.0N
 (±20.00kg)
 (±50lb)
 ±500.0N
 (±50.00kg)
 (±100lb)
 ±1000N
 (±100.0kg)
 (±200lb)

Display range

±2.000N
±200.0g
±0.5lb
 ±5.000N
 ±500.0g
 ±0.1lb
 ±10.00N
 ±1000g
 ±0.2lb
 ±20.00N
 ±2000kg
 ±5lb
 ±50.00N
 ±5.000kg
 ±10lb
 ±100.0N
 ±10.00kg
 ±20lb
 ±200.0N
 ±20.00kg
 ±50lb
 ±500.0N
 ±50.00kg
 ±100lb
 ±1000N
 ±100.0kg
 ±200lb

Resolution

0.001N
0.1g
0.001lb
 0.01N
 1g
 0.001lb
 0.01N
 0.001kg
 0.001lb
 0.01N
 0.001kg
 0.01lb
 0.1N
 0.01kg
 0.01lb
 0.1N
 0.01kg
 0.1lb
 1N
 0.1kg
 0.1lb

Unit

N,kg(g),lb(oz)(Reversible display)

Measuring mode

Standard measuring,Plus peak measuring,Minus peak measuring

Display cycle

1,2,3,5,10,20 times per second

Sampling Rate

1000 times per second

Accuracy

±0.2% R.C. ±1/2digit(23℃)

Influence of temperature

Gain:±0.01%LOAD/℃ Zero:±0.01%/R.C./℃(Drift of zero point can be cancelled with tracking function.)

Display

Main display:4-digits 12mm high, Reversible display
Unit display:3-digits 7mm high
Other display
1."LO BAT"(Decrease battely voltage),
2."BAT"(Battery charge),
3."OVR"(Over load),
4."Peak"(Peak hold mode)

Overload

200% R.C.  150%R.C.

Tracking

Available(ON/OFF)

 Output

USB

Communicate with PC by special application software (max 100x/s). Connection cable is a standard accessory.

RS-232C

Communicate with PC by special command(maximum 100 times per second), Connection cable is option.

Analog

±1V, Accuracy ±50mV, through a 12 bit D/A converter

Output update 1000 times per second, Acceptable tare, Load resistance is more than 10k Ω

 Overload/Comparator

Open-collector output(Max DC30V/5mA).Either overload output or comparator output.

Power

Rechargeable Nickel hydride battery or AC adapter/charger, measurable during the charge

Operating hours: about 8 hours after full charge

Charging time: Max 16 hours (when the battery is full, charge ends automatically.)

Auto Power Off

10 minutes (not active if adapter/charge is in use) or OFF

Memory function

Continuous memory: 1000 data, Single memory: 100 data, Standard memory: 50 data
Statistic function(max, minimum, peak, average, standard deviation)

Comparator function

Yes (high and low)

Temperature range

0-40℃ no condensation

Humidity range

35~85%RH no condensation

Dimensions

147mm *(L)×75mm(W)×38mm(H)

Weight

Approx.450g  Approx.500g

Accessories(Included)

AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, extension rod, USB cable

Application software

Application software (USB version), ToriemonUSB

* Dimension for FGP-0.2~0.5 is 141mm, FGP-100 is 149mm.
