DeFelsko Concrete Surface Profile PosiTector SPG TS

Segera Hubungi Kami :

(62) 778 408 6403

sales@lfc.co.id

PosiTector® SPG Surface Profile Gauge for Concrete Profile Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable PosiTector interchangeable platform—attach any PosiTector probe to a single gage body Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others Simple Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation NEW On-gage help explains menu items at the touch of a button RESET feature instantly restores factory settings Durable Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure NEW Ergonomic design with durable rubberized grip Rugged, indoor/outdoor instrument - ideal for field or shop use Shock-absorbing protective rubber holster for added impact resistance Two year warranty on gage body AND probe Accurate Certificate of Calibration showing traceability to PTB included Built-in temperature compensation ensures measurement accuracy Glass Zero Plate and metal check shim included Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17 versatile icon Versatile PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gage 30º angle interchangeable probe tip available for special surface profile applications Cabled probes available for blasted steel, textured coatings, and concrete profile NEW Auto rotating display with Flip Lock Selectable display languages Mils/Microns switchable Powerful Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring NEW Screen Capture—save 100 screen images for record keeping and review HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Instant-on feature quickly powers up the gage if recently powered down NEW Up to 30% longer battery life USB port for fast, simple connection to a PC and to supply continuous power. USB cable included PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required. Every stored measurement is date and time stamped Includes PosiSoft Software for viewing and reporting data Software Updates via web keep your gage current   LFC is the authorized distributor for DeFelsko in Singapore and Indonesia. Contact us to purchase the PosiTector SPG or any other DeFelsko products.

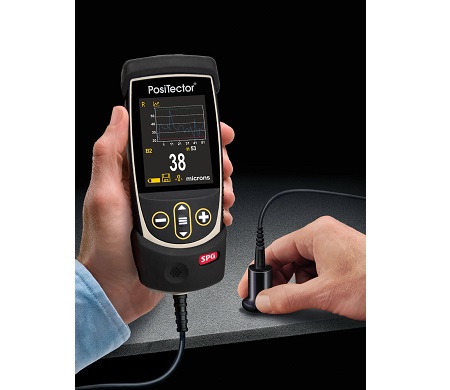

PosiTector® SPG

Surface Profile Gauge for Concrete Profile

Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings

  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others

PosiTector SPG Technical Specifications

Simple

  • Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Rugged, indoor/outdoor instrument - ideal for field or shop use
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Glass Zero Plate and metal check shim included
  • Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17
  • versatile icon

Versatile

  • PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
  • 30º angle interchangeable probe tip available for special surface profile applications
  • Cabled probes available for blasted steel, textured coatings, and concrete profile
  • NEW Auto rotating display with Flip Lock
  • Selectable display languages
  • Mils/Microns switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft Software for viewing and reporting data
  • Software Updates via web keep your gage current



DeFelsko Probe Interchangeability

LFC is the authorized distributor for DeFelsko in Singapore and Indonesia. Contact us to purchase the PosiTector SPG or any other DeFelsko products.



SPESIFIKASI DeFelsko Concrete Surface Profile PosiTector SPG TS

PosiTector SPG TS Technical Specifications

Range 0–6 mm
0–250 mils
Accuracy ±(76 µm + 1%)
±(3 mils + 1%)
Tip Angle 60˚
Radius 500 µm (20 mils)



PosiTector SPG Technical Specifications

Select from 5 Different Models:

PosiTector SPG Technical Specifications

DeFelsko PosiTector SPG Ordering Guide:

Application Blasted Steel Concrete Surfaces Textured Coatings Concrete Surface Profile
Probe Type Integral Cabled
Standard SPG 1 SPG S1 SPG OS1 SPG CS1 SPG TS1
Advanced SPG 3 SPG S3 SPG OS3 SPG CS3 SPG TS3
Probe Only PRBSPG PRBSPGS PRBSPGOS PRBSPGCS PRBSOGTS

Note: All DeFelsko Gauges comes complete with glass zero plate, metal check shim, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to PTB, USB cable, PosiSoft Software, two (2) year warranty on body and probe.


DeFelsko PosiTector SPG Accesories :

  • Certified SPG Standards to verify accuracy and operation of surface profile depth micrometers
  • Replacement non-certified metal check shim and glass zero plate
  • Replacement tungsten carbide probe tips
  • AC Power Kit for continuous AC operation or battery charging
