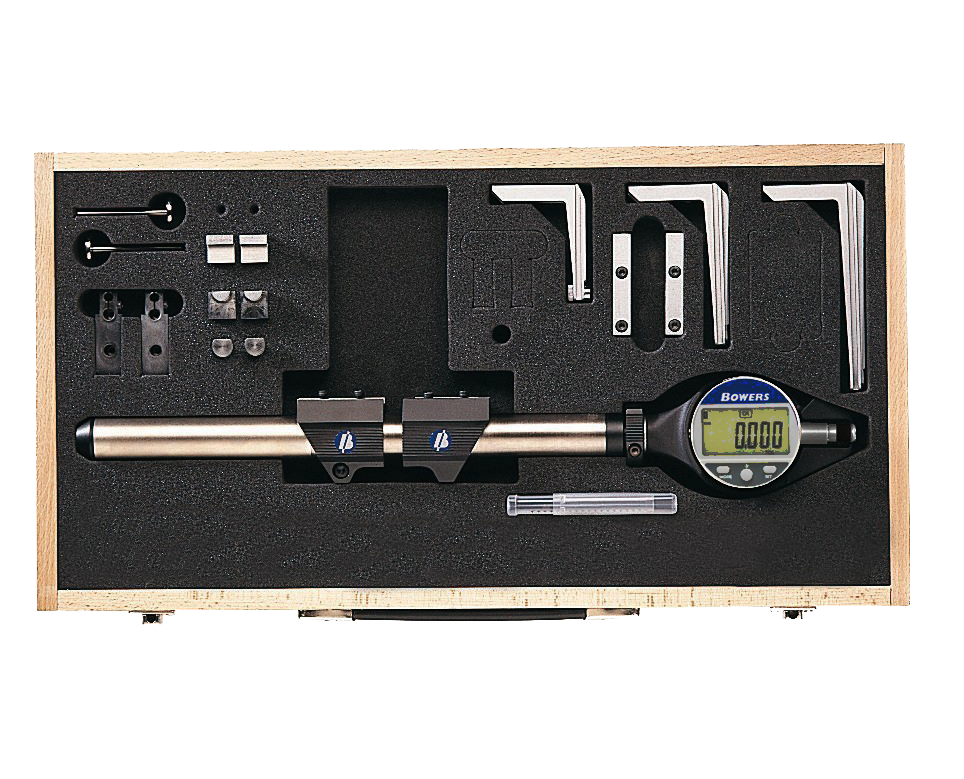

Bowers Universal Beam Gauge Full Set are devised to measure both internal and external diameters and lengths, and inspection of larger diameter of spherical workpiece. This clever bore gaging is made with ingenious modular format for a quickly configured set up and interpolation almost any measuring challenge. Thanks to its versatility as an universal gage, this device is suitable for measuring high accuracy diameters and lengths up to 3000mm+.

Bowers Universal Beam Gauge Full Set is offered with shared technology from Sylvac dial gages which are known for its durability, connectivity and accuracy even at hazardous working condition which usually difficult with comparable brands. The constant-force digital dial gauge by Sylvac will ensures that the measuring pressure remains constant whilst radiussed measuring anvils provide optimum centralisation in the part with maximum error of 4 µm. Furthermore, with Sylvac dial gauges, you can record and transmit the data to any devices, through its RS-232 or USB connectivity. The Bluetooth configuration will also minimize human error and provide you a realtime and traceable measurement whenever asked by customer with the most demanding specification.

Bowers Universal Beam Gauge Full Set is the finest investment in measuring precision bore. This gage is compatible with large variety of measuring contacts and adaptors, enabling countless measuring tasks to be completed with ease. Accessories for the measurement of threads, odd grooves, splines, gears, hole centres, and many others are available as standard, whilst special adaptations for more unusual applications can also be ordered.

This clever gage is highly regarded by many operator in doing routines in larger bores, barrels, hydraulic - pneumatic shaft of heavy machineries. jet valves intakes, turbochargers, propellers, refinery pipes, exhaust system, commonrail tubes on large diesel marine engine system, hollow shaft and tubes. Each packages are delivered with sets of traceable certificate for your ultimate precision and ensuring repeatability.



Bowers Universal Beam Gauge Full Set Features:
  • Large measuring range possible 0-3000mm (0-118")
  • Constant measuring force
  • Supplied with digital readout
  • Large range of accessories for standard measurement of threads, grooves, splines, diameters, lengths, shallow spigots and recess diameters etc
  • Special anvil designs can also be ordered
  • Bluetooth option and various readouts available from Sylvac



SPESIFIKASI Bowers Universal Beam Gauge Full Set

Bowers Universal Beam Gauge Full Set Ordering Guide:


Code No.Description
TGUDEMO Universal Gauge Full Set
TGUDEMO-BT Universal Gauge Full Set (with Bluetooth)
