Bowers Carbon Fibre Comparator Beam Gauge

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Bowers Carbon Fibre Comparator Beam Gauges are devised to measure both internal and external diameters and lengths, and inspection of larger diameter of spherical workpiece. Made of the high modulus carbon fibre beam which is stiff and lightweight, Bowers Comparator Beam Gauge has an extremely low co-efficient of thermal expansion (CTE). Thanks to its versatility as an universal gage, this device is suitable for measuring high accuracy diameters and lengths up to 4000mm+. Bowers Carbon Fibre Comparator Beam Gauge is offered with Sylvac dial gages which are known for its durability and accuracy even at hazardous working condition which usually difficult with comparable brands.

The Bowers Carbon Fibre Comparator Beam Gauge is also compatible with constant-force digital dial gauge by Sylvac to ensures that the gauging action and pressure remains constant throughout the measurement whilst radiussed measuring anvils provide optimum centralisation in the part with maximum error of 4 µm. Furthermore, with Sylvac dial gauges, you can record and transmit the data to any devices, through its RS-232 or USB connectivity. The Bluetooth configuration will also minimize human error and provide you a realtime and traceable measurement whenever asked by customer with the most demanding specification.

Bowers Carbon Fibre Comparator Beam Gauge is the finest investment in measuring precision bore. Thanks to its Sylvac IP67 certified electronics, your operator can work freely in harsh environment against water, humidity, sea water moist and direct exposure of oil and coolant. This clever gage is highly regarded by many operator in doing routines in larger bores, barrels, hydraulic - pneumatic shaft of heavy machineries. jet valves intakes, turbochargers, propellers, refinery pipes, exhaust system, commonrail tubes on large diesel marine engine system, hollow shaft and tubes. Each packages are delivered with sets of traceable certificate for your ultimate precision and ensuring repeatability.



Bowers Carbon Fibre Comparator Beam Gauge Features:
  • Lightweight even at 4m of fully stretched span
  • Extremely low co-efficient of thermal expansion
  • Measuring capacity of standard set:
    External: 0 > 1930mm
    Internal: 150 > 2150mm
  • Modular design of beam allows infinate level of adjustment within the above ranges
  • Additional 1000mm extensions add quickly and cost effectively to the gauge capacity
  • Internal and external measurement: 0 > 105 (150)mm measurement depth from component face
  • 12mm anvil travel
  • Tooling included for presetting gauge on Trimos horizontal machines
  • Bluetooth option and various readouts available from Sylvac

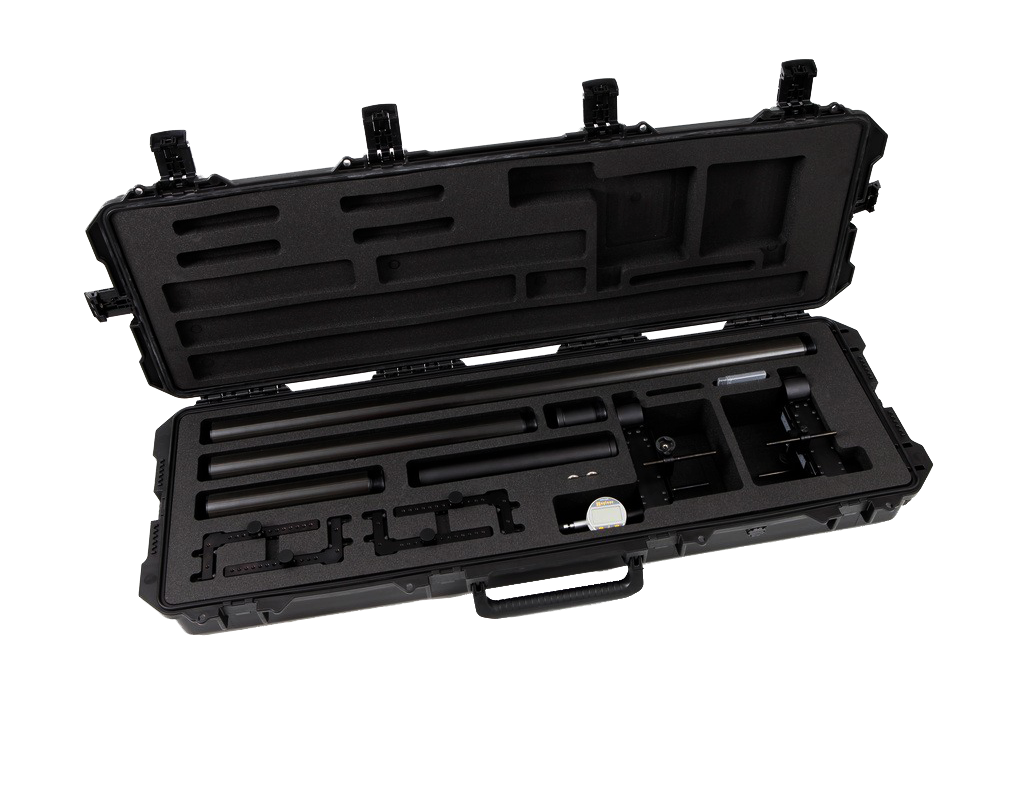

Bowers Carbon Fibre Comparator Beam Gauge On Standard delivery:

  • Pair gauge legs
  • Fixed leg tube
  • Moving leg tube
  • 250mm Carbon Fibre Extension Tube
  • 500mm Carbon Fibre Extension Tube
  • 1000mm Carbon Fibre Extension Tube
  • Tooling to suit Trimos setting machine and storage/travel case





SPESIFIKASI Bowers Carbon Fibre Comparator Beam Gauge
