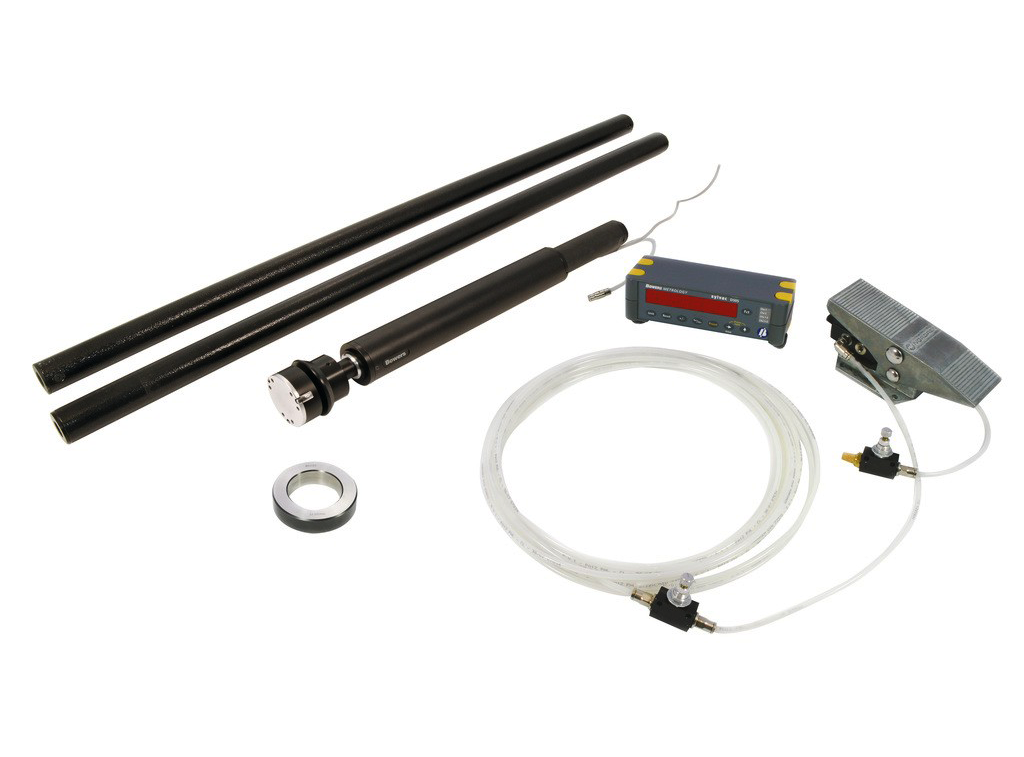

Bowers Special Bore Measurement - Deep Hole Pneumatic are devised for measuring precision bore on fast paced production line, under laboratory of either manual or fully automated system. This clever bore gaging is offered for diameters of 50-310mm with up to 15m deep. Bowers Special Bore Measurement - Deep Hole Pneumatic is operated by connecting a pneumatic actuator powered by a 3 bar compressed air supply - either from a compressor or a workshop air-line. Furthermore, the pistol grip body indicator itself is using the same technology with Sylvac Bore Gauge Pistol-grip Xtreme 3 Holematic BT.

You can also collect the measurement data by a capacitive probe fitted just behind, and in constant contact with the measuring head. This direct contact ensures high-quality transducer-type accuracy, even at great depths which usually difficult with comparable brands. Measurements are taken by pressing a footswitch connected to the airline and the data is then passed automatically via cable back down the bore to the digital readout at the operator end.

Bowers Special Bore Measurement - Deep Hole Pneumatics are the only reasonable investment in measuring vertical bores, artillery barrels, hydraulic - pneumatic shaft of heavy machineries. hole pins shaft, refinery pipes, exhaust system, commonrail tubes on large diesel marine engine system, hollow shaft and tubes. Each packages are delivered with sets of traceable certificate for your ultimate precision and ensuring repeatability.



Bowers Special Bore Measurement - Deep Hole Pneumatic Features:
  • UKAS certificates standard for all measuring heads and setting rings•
  • Measures diameters from 50-310mm, up to 15m deep
  • Spherical, Tungsten Carbide anvils
  • 2 point and 3 point heads available
  • Accuracy +/-0.005mm (subject to bore condition)
  • Quick set-up time & easy to use
  • Not adversely effected by temperature fluctuation
  • Robust design
  • Various readouts available from Sylvac



SPESIFIKASI Bowers Special Bore Measurement - Deep Hole Pneumatic

Bowers Ultima Bore Gauge - Sets without Sylvac Display Ordering Guide:

 SBM-Deep-Hole
