Euromex Novex Microscope B & B+ Series

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Euromex Novex B & B+ Series are optimized for observation of specimen with fluorescence matter such as living tissue in life sciences and mineral subsatance such as gems as well. The Novex head has an ergonomic viewing angle of 360°, and equipped with 30° inclined tubes. Tube length 160 mm. Considering the simplicity of the setup, the quality of images obtained from this microscope's technique is impressive. In addition, the compact form factor also made Euromex Novex B & B+ Series become a highly sufficient device on any laboratory.

Euromex Novex B & B+ Series work quite similar with the classic camera negative film by describing darkfield illumination technique which are used to enhance the contrast in unstained specimen. By illuminating the specimen with light that will not be collected by the objective lens, the appearance of a dark, almost black, background with bright objects on it can be produced easily.

Thanks to its coaxial coarse controls, you can ensure a perfectly focused image, without having to switch the position of your hands. With fine adjustments, you can have up to 200x zooming on 1 µm per graduation, 200 µm per rotation, and total travel approximately at 23 mm. Furthermore, the fluid movement itself has been designed for convenient and versatility to observe all kind of Life Sciences applications. The Euromex Novex B & B+ Series feature a cardioid mirror condenser with 5 W integrated NeoLED™ illumination and a S100x objective with built-in iris diaphragm for real 1000x dark field applications.

Your investment on Euromex Novex Microsope B & B+ Series will allow you to have a higher quality of imaging with entirely free of artifacts, due to the nature of the process. There are 3 models to choose from; Monocular, binocular and trinocular series. The Standard model comes with wide field WF10x/18 mm eyepieces while the The B+ series come with wide feld WF10x/20 mm eyepieces. However if you are looking for regular microscopy method with inverted illumination on filtered color for transparent specimen, you might as well consider Euromex Fluorescence Microscope Oxion OX.3070.



Euromex Novex Microsope B & B+ Series Feature:

  • Uniquely swiveling operation enable the viewing height to be easily configured for lesser fatigue under many hours of observation.
  • All optics are anti-fungus treated and anti-refection coated for maximum light throughput

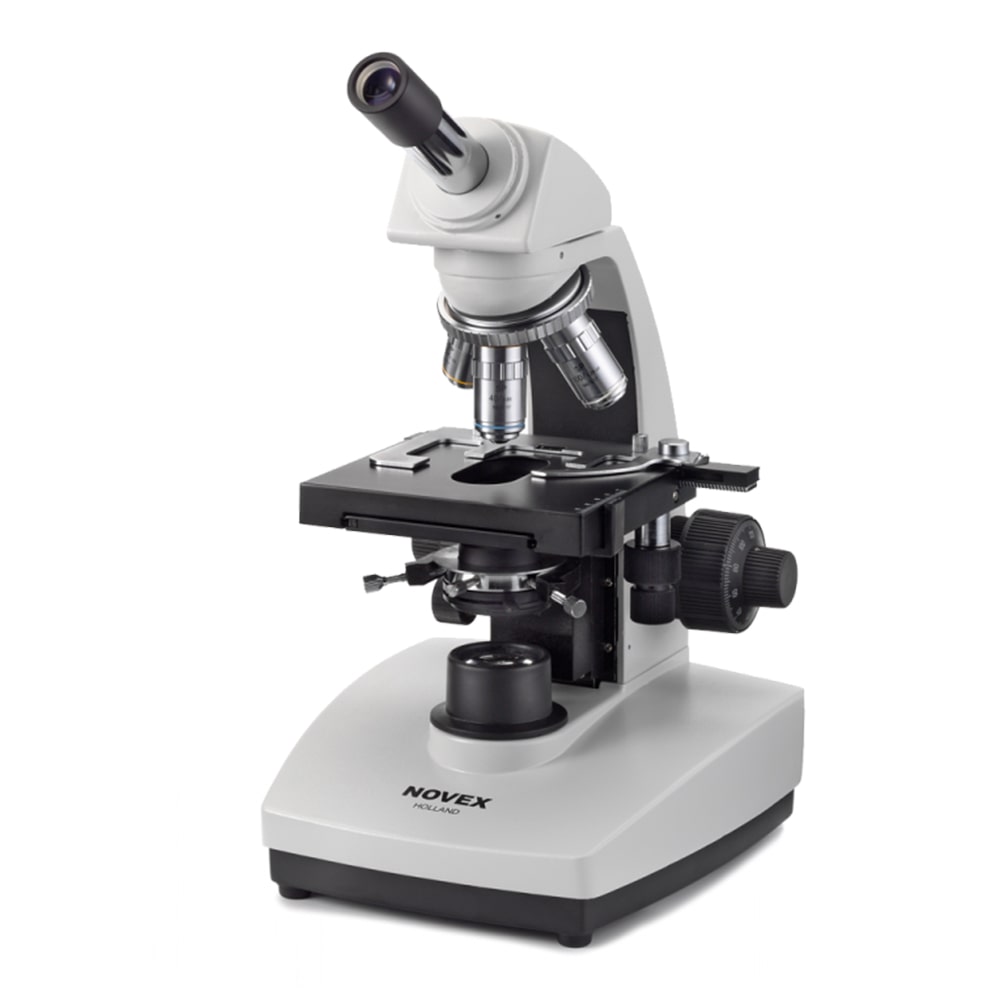

  • Monocular, binocular and trinocular models
  • WF10x/18mm or WF 10x/20 mm eyepiece(s)
  • Revolving reversed nosepiece for 4 or 5 objectives
  • Semi plan, plan IOS, semi plan phase and plan phase objectives
  • Integrated X-Y mechanical stage for convenient specimen handling
  • Coaxial coarse and fine adjustment with adjustable rack-stop
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and flter holder
  • 1W LED illumination with rechargeable batteries and integrated power supply
  • 20W halogen illumination with integrated power supply





SPESIFIKASI Euromex Novex Microscope B & B+ Series

Euromex Novex B & B+ Series Ordering Guide:

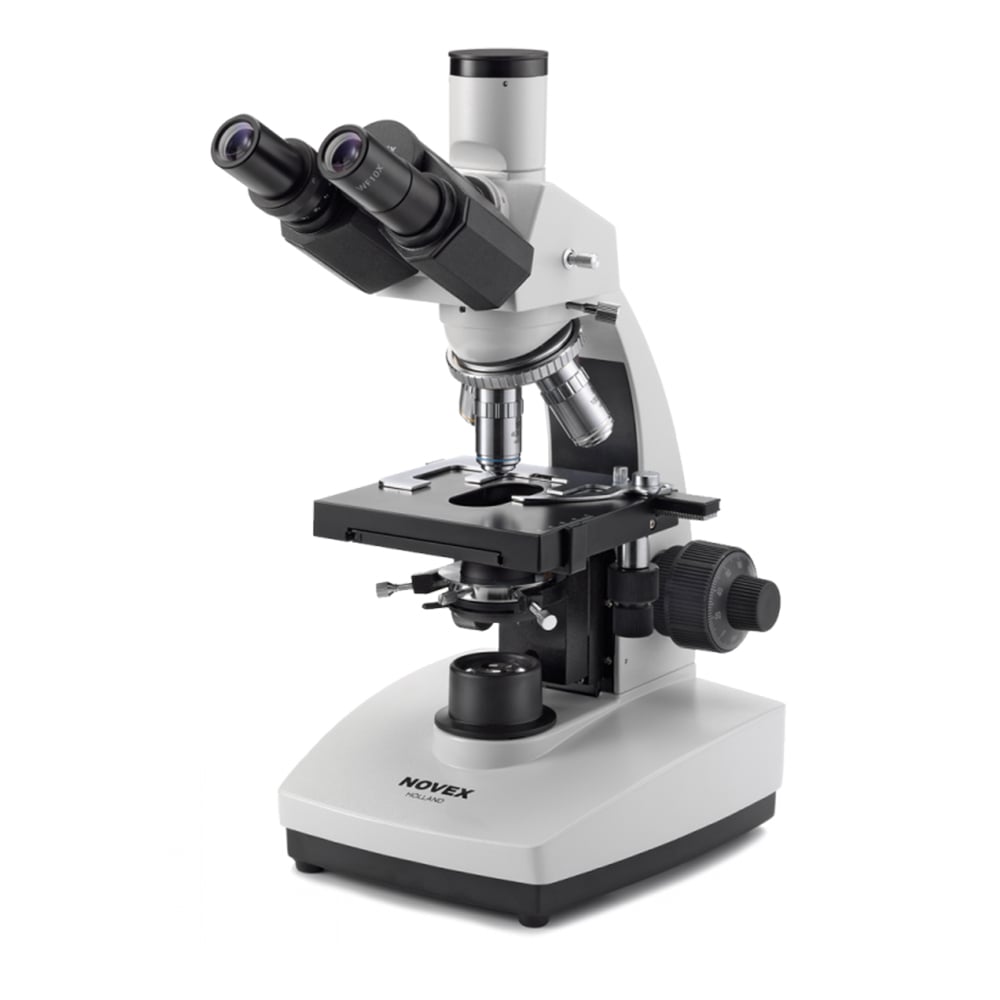

Model Trinocular B-series microscope 86.391 for phase contrast with PLPH 10/20/S40/S100x oil plan phase contrast objectives and 20 W halogen illumination
Condenser Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob.
Eyepiece DIN widefield eyepieces WF10x/18 mm.
Head

Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm. Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment

Objectives

Planphase DIN-objectives PLPH 10x /N.A.0.25, PLPH 20x/ N.A.0.40, PLPH S40x/ N.A.0.65 and PLPH S100x/ N.A.1.25 oil-immersion. The 40x and 100x objectives are spring-mounted.

Stage Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
Nosepiece

Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives.

Illuminator Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer.
Packaging Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case.



Harga Euromex Novex Microscope B & B+ Series

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
