Taipu Electric Arm Tapping Machine TP110 Series

Segera Hubungi Kami :

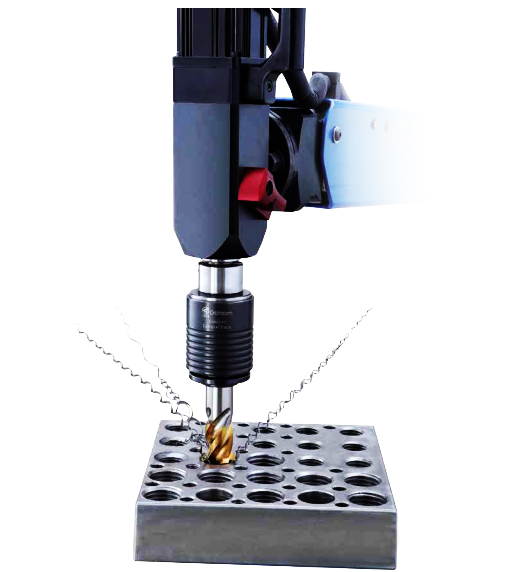

Taipu Air Tapping Machine TP110 Series are powered by durable pneumatic motors. The process of cutting or forming threads with its DC motors allows you to easily do programmable torque, consistent speed and flexible tapping. You can do both manually vertical or horizontal tapping by its standard configuration of floating model. With tapping capacity from M3 to M30, the value tapping set will surely adds the versatility needed on your factory floor.

Compared to air tapping machine, the Taipu's electric powered Tapping Machine TP110 Series require lesser fatigue to be operated by your operator as the machine itself works with lower vibrations and allows simulated and programmable tapping. Furthermore, its fluid locking arm mechanism will surely enable you to work with busy pace without the risk of swarf and metal chips cuts the air hose as in pneumatics. Your operator will find its Quick-change chuck with Φ31 mm is practical as it only need 3 to 5 seconds to initiate a new tool.

Depends on the cutting tools application, The Taipu Electric Tapping Machine TP110 should deliver optimum performance at the speed of 150 R.P.M. With proper selection of tooling system, the new Taipu Tapping Machine TP110 Series will fare you a better return on investment, especially when you are working with routine on various steel, iron, copper, aluminum, plastic and other materials as well.

Taipu Air Tapping Machine TP110 Series Features:

Vertical & horizontal Tapping Machine
Floating 360° degree of movement
Planetary 2 speed gear for efficient powertrain
Programmable speed depth, torque step and simulated manual tapping mode
Capacity from M3 to M30
Quick-change chuck with Φ31mm
Stable speed up to 150 R.P.M
Working radius of 1100 mm
Compact form factor with suficient power of 1.2 KW
Can also be ordered with German made tapping bit & colletes

SPESIFIKASI Taipu Electric Arm Tapping Machine TP110 Series

Taipu Tapping Machine Series Schematic Dimension:

Taipu Tapping Machine TP110 Series Ordering Guide:


Model No.	TP1100-24A(U)	TP1100-30A(U)
Tapping Capacity	M3-M24	M3-M30
Working Radius (mm)	1100	1100
Chuck Size (mm)	Φ31	Φ31
Power (KW)	1.2	1.2
Speed (r.p.m)	0-150	0-150
N/W (kgs) G/W (kgs)	32	35
N/W (kgs) G/W (kgs)	40	45
Package size(mm)	720×475×300	720×475×300
