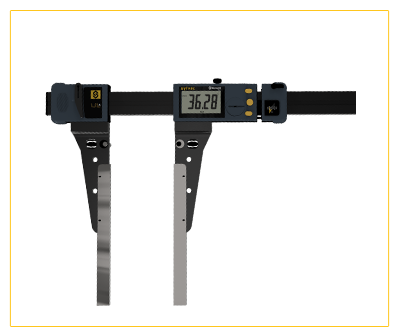

Sylvac Ultra Light Caliper UL4 special jaws A

Segera Hubungi Kami :

Sylvac Ultra Light Caliper UL4 special jaws A is made of lightweight material (3 meters range weighs only 3.3kg) and designed well balanced by utilizing state-of-the-art material technology. The electronic enclosure are made of the latest wear-resistant materials to withstand 1 meter of direct water and oil spill in adherence to IP67 certification.

The latest bluetooth transfer technology also allows your operator to timely measure and send the measurement data within a click of a button directly to any devices such as PC, printers and smartphones.

Sylvac Ultra Light Caliper UL4 special jaws A Features :

Ultra light caliper for external and internal measurements
Integrated Bluetooth® wireless technology
New Series with extra large display
Aluminium beam reinforced by four stainless steel rods
Long jaws 200 mm coated with titanium
New carbide upper internal tips
Measuring force applied control
Protected IP67
Extremely light instrument

Sylvac Ultra Light Caliper UL4 special jaws A Benefits:

Hollowed section aluminium beam reinforced by four stainless steel rods
Measuring scale resistant to liquid

SPESIFIKASI Sylvac Ultra Light Caliper UL4 special jaws A

Sylvac Ultra Light Caliper UL4 special jaws A Dimensions:

Sylvac Ultra Light Caliper UL4 special jaws A Ordering Guide:

		811.2316.99	811.2317.99
Special jaws (pair)		Length L to specify with order (max 400 mm)
L	mm	≤ 300	≤ 400
M	mm	L - 75

		UL 400	UL 600	UL 1000	UL 1500	UL 2000	UL 2500	UL 3000
UL specification		Max. error. [µm] / Repeatability [µm]
With Jaws 811.2316.99		40/20	50/20	70/20	130/30	180/40	220/40	320/40
With Jaws 811.2317.99		70/40	80/40	120/40	200/50	300/60	400/70	500/80
Measuring range	mm	400	600	1000	1500	2000	2500	3000
A	mm	0-478	0-683	0-1093	0-1608	0-2123	0-2638	0-3153
C	mm	27-505	27-710	27-1110	27-1635	27-2150	27-2665	27-3180
B	mm	796	1001	1411	1926	2441	2956	3471
Resolution	mm	0.01
