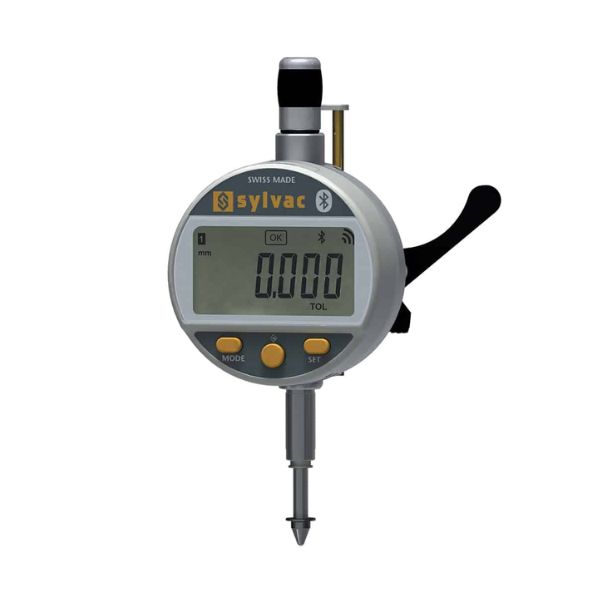

Sylvac S_Dial Work Bluetooth SMART, the first digital dial gauge with in-built bluetooth
The Sylvac S_Dial Work BT Smart is a digital indicator with built-in Bluetooth transmission. It has a max error of up to 3um with a reinforced clamping shaft. This device can also be used for improvised gauging rig with Sylvac's gaging multiplexer software.
Combine with D300S digital display for automatic detection of gauge and easy data collection experience.
Functions:
- 100% programmable by PC
- Min/Max/Delta/Tol/Factor/Preset/Auto-off functions etc
- Tolerances limits indicator
- Wireless and wired capability
- In-built Bluetooth
- Proximity cable
- Data Collection and Transmission
Data Collection Options:
- Sylconnect PC software
- D300S digital display with in-built statistical functions
- Direct input to SPC, Labview, or other manufacturing control and analysis software
SPESIFIKASI Sylvac Digital Indicator S_Dial Work Bluetooth SMART
Sylvac S_Dial Work Bluetooth SMART Dimensions:
Sylvac S_Dial Work Bluetooth SMART Ordering Guide:
| 805.6301 | 805.6501 | 805.6621 | 805.6661 | ||
| Measuring range | mm | 12.5 | 25 | 50 | 100 |
| Resolution | mm | 0.001 | |||
| Max. Error fe | µm | 3 | 4 | 5 | 6 |
| Repeatability | µm | 2 | |||
| IP rating | IP54 | ||||
| A | mm | 56.7 | 69.4 | 121 | 172 |
| B | mm | 66.1 | 78.5 | 142 | 244 |
| C | mm | 50.5 | 50.5 | 88 | 139 |
| D | mm | 36.6 | 49.4 | - | - |
| Output data | Bluetooth® wireless technology / USB / RS232 | ||||
| Programmable by PC | • | ||||
| Standard functions (customised by PC) | min/max/delta, tolerances, resolution, direction of measurement, multiplicatio factor, automatic or manual switch off, key lock | ||||
1) ±1 digit
