Moore & Wright Digital Depth Micrometer 305-DDL Series

Segera Hubungi Kami :

(62) 778 408 6403

sales@lfc.co.id

SPESIFIKASI Moore & Wright Digital Depth Micrometer 305-DDL Series

Moore & Wright Digital Depth Micrometer 305-DDL Series Ordering Guide:


Code No.Range (mm)Range (inch)Resolution (mm)Resolution (inch)Size of Base
MW305-00DDL 0-25 0-1 0.001 0.00005 100mm
MW305-01DDL 0-50 0-2 0.001 0.00005 100mm
MW305-02DDL 0-100 0-4 0.001 0.00005 100mm
MW305-03DDL 0-150 0-6 0.001 0.00005 100mm
MW305-04DDL 0-200 0-8 0.001 0.00005 100mm
MW305-05DDL 0-300 0-12 0.001 0.00005 100mm



Dapatkan Penawaran Harga

Silahkan isi formulir di bawah ini untuk mendapatkan penawaran harga terbaik dari tim kami,

Moore & Wright Digital Depth Micrometer 305-DDL Series are complied with: DIN 863
Moore & Wright Digital Depth Micrometer 305-DDL Series are manufactured by Bowers for your reliable precision in measuring the depth of bore, tap, slot, and various other application on your toolmaking fabrication. Certified with DIN 863 standards and IP54 electronics feature, you can easily facilitate your operator when working in harsh environment with direct splash of water and humid application in any fabrication floor.

By investing on Moore & Wright  Digital Depth Micrometer 305-DDL, you can have highly repetitive value by its interchangeable rods. When the pointer is between two markings, you can easily interpolate your measurement with constant force and read the result faster by its larger LCD screen. Furthermore, thanks to its fluid ratchet thimble your prompt tuning is assured which allows for versatile gauging.


Moore & Wright Digital Depth Micrometer 305-DDL Series Features:

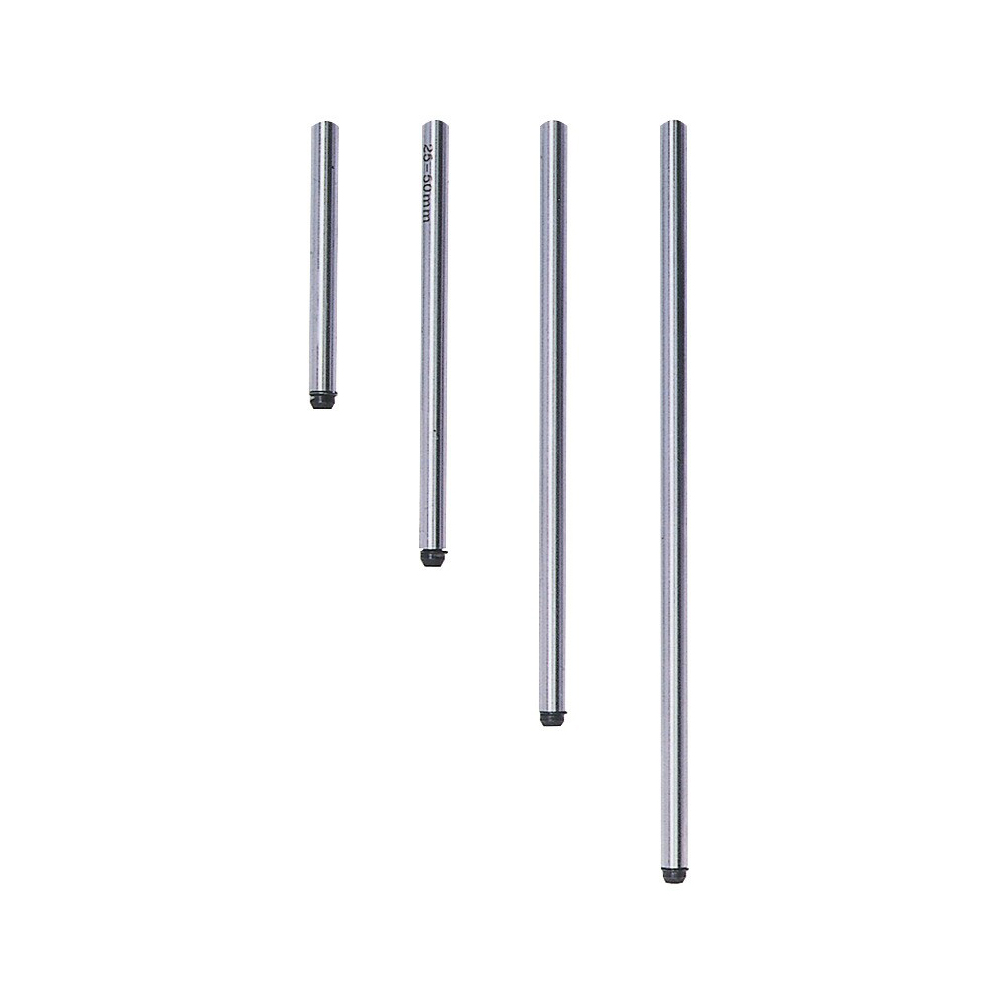

• Interchangeable rods (spherical ends)
• Rods are hardened and spherically lapped.
• Features 'easy to read' large 7.5mm character height, digital display.
• 'Soft keys' for maximum operating comfort.
• Constant force ratchet thimble for fluid tuning.
• Satin chrome finished base.
• Functions: mm / inch conversion, set, on/off, zero-setting, battery low indication, hold, 0...ABS.



">
