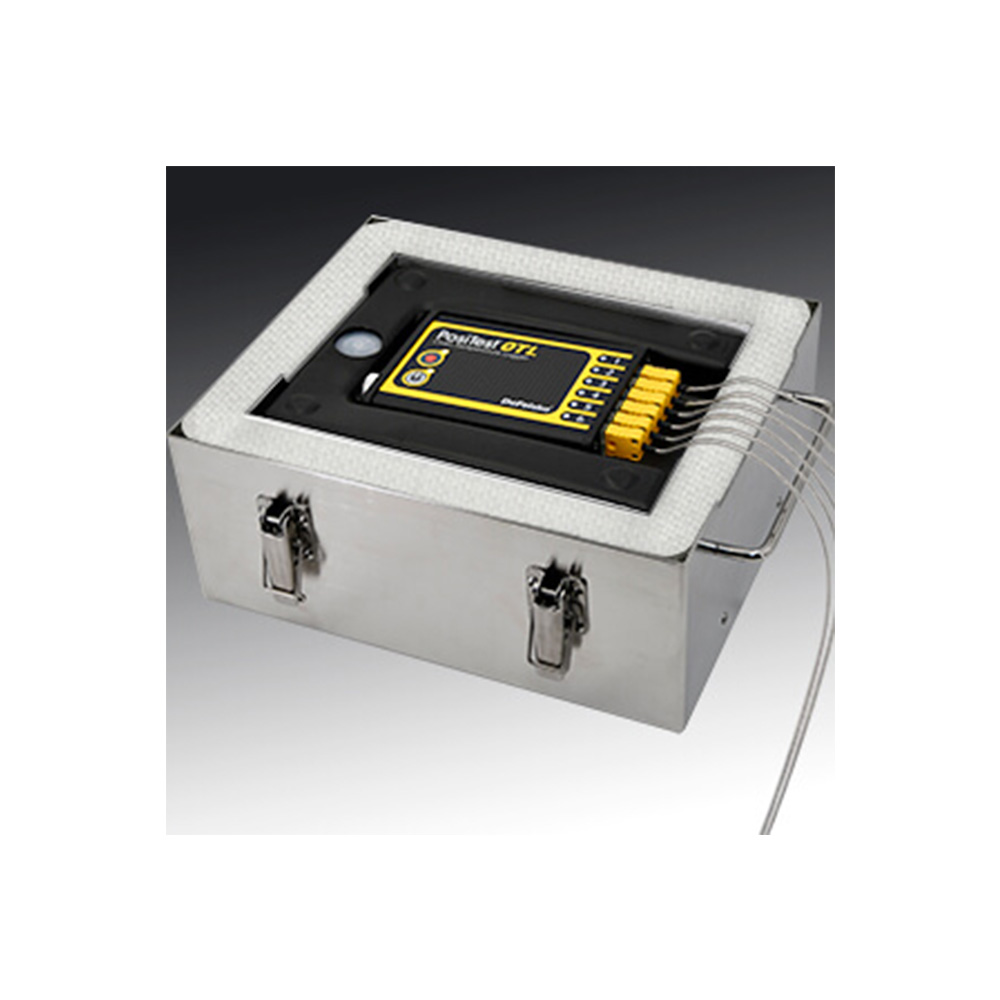

DeFelsko PosiTest OTL Oven Temperature Logger

Segera Hubungi Kami :

Merekam dan Mencatat Profil Suhu Oven:

Merekam dan mencatat hingga 40.000 set data (240.000 bacaan) ke dalam 6 batch independen
Kotak penghalang stainless steel suhu tinggi dengan isolasi fiberglass untuk pengoperasian yang lama pada suhu tinggi. Tidak mengandung silikon.
6 port termokopel jenis K (channel)
Mengunduh, melihat dan menganalisis data batch menggunakan Perangkat Lunak Desktop PosiSoft. Ekspor file. CSV untuk diimpor dengan mudah ke spreadsheet.
Beragam probe tersedia dengan kabel jalinan stainless steel 1,8 atau 3,6 m (6 'atau 12') (dijual terpisah)

Beberapa fitur dari DeFelsko PosiTest OTL Oven Temperature Logger:

Antarmuka yang sederhana dan mudah digunakan
6 port termokopel jenis K (channel)
Merekam dan mencatat hingga 40.000 set data (240.000 bacaan) ke dalam 6 batch independen
Merekam pengukuran setiap 2 detik selama waktu perekaman hingga 22 jam
Mengunduh, melihat, dan menganalisis data batch menggunakan Perangkat Lunak Desktop PosiSoft. Ekspor file. CSV untuk diimpor dengan mudah ke spreadsheet
LED terang menunjukkan status logger secara cepat
Kotak penghalang stainless steel suhu tinggi dengan isolasi fiberglass untuk pengoperasian yang lama pada suhu tinggi. Tidak mengandung silikon.
Sertifikat kalibrasi yang menunjukkan traceability ke NIST disertakan

LFC adalah distributor resmi untuk DeFelsko di Singapura dan Indonesia. Contact us untuk membeli PosiTest OTL atau produk DeFelsko lainnya.

DeFelsko OTL Oven Temperature Logger Specifications


Channels	6 K-type non-grounded thermocouples
Thermocouple Measurement Range	-100 to 1000°C -148 to 1832°F
Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box	0 to 70° C 32 to 158° F
Logger Accuracy	±0.5° C ±0.9° F
Resolution	0.1° C 0.1° F
Memory	40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval	2 seconds (Fixed) Maximum recording time is 22 hours
Power Source	2 AAA batteries
Battery Life	Battery Life
Size	30.5 x 25.5 x 15 cm (12" x 10" x 6")
Weight*	9 kg (20 lbs.)

* Weight includes the PosiTest OTL Holder, and Barrier Box. Holder XT increases weight to 11 kg (25 lbs.)

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.

I authorize the use of the information given above for marketing purposes.

Measures and Records Oven Temperature Profiles:

Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
High-temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
6 K-type thermocouple ports (channels)
Download, view, and analyze batch data using PosiSoft Desktop Software. Export. CSV files for easy import into spreadsheets.
Wide variety of probes available with 1.8 or 3.6 m (6' or 12') stainless steel braided cables (sold separately)

Here are some features of the DeFelsko PosiTest OTL Oven Temperature Logger :

Simple, easy-to-use interface
6 K-type thermocouple ports (channels)
Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
Records measurements every 2 seconds for up to 22 hours of recording time
Download, view, and analyze batch data using PosiSoft Desktop Software. Export. CSV files for easy import into spreadsheets.
Bright LEDs indicate logger status at a glance
High-temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
Certificate of calibration showing traceability to NIST included

LFC is the authorized distributor for DeFelsko in Singapore and Indonesia. Contact us to purchase the PosiTest OTL or any other DeFelsko products.
