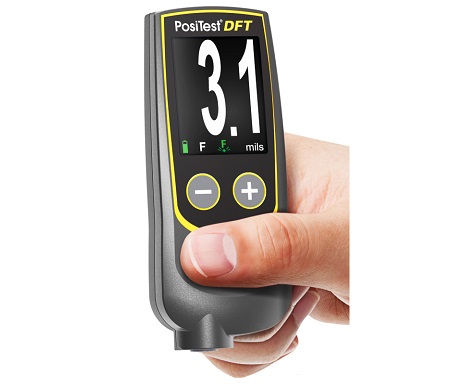

The newly improved DeFelsko PosiTest DFT offer the simplest method to measure coating thickness on all metals with the addition of OLED screen. Regardless of type and process of coating either rubber paint, epoxy, enamel, lacquer or chrome, the pocket sized DeFelsko PosiTest DFT uses the proven industrial standard ultrasonic technology powered by AAA sized battery. Thanks to its compact form factors, the new DFT is lighter by 20 grams compared to the previous model with LCD screen. You can inspect instantly the uniformity of powder paint, coating and value the life of a product.

Compared to DeFelsko positector line up, DeFelsko PosiTest DFT comes at a much affordable price. Notably, end-users of this coating thickness device are from small and medium workshop owners, painting contractors, automotive dealer professional and paint-chrome plating shop. To cater each tye of coating material, the DeFelsko PosiTest DFT comes in two models:

  1. PosiTest DFT Ferrous: measures non-magnetic coatings on steel
  2. PosiTest DFT Combo: measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc.  Automatically recognizes the substrate and takes a measurement.

DeFelsko Coating Thickness Gauges PosiTest DFT features:

  • Instant reading, repeatable measurements within a button start measure - No calibration required for most applications
  • ZERO feature for rough or curved surfaces
  • New! 1 Point Calibration Adjustment feature for adjusting to the known thickness of a shim placed over rough or curved surfaces
  • New! Displays the moving average for up to the last 10 measurements
  • Handy RESET feature when no zero reference is available
  • Strong, wear resistent, ruby-tipped probe
  • Flip Display for right-side-up viewing in any position
  • Audible and visible measurement indication
  • V-groove in probe for positioning on cylindrical parts
  • Basic instructions on the back of each gage
  • Mils/Microns switchable, with industrial standards conforms to: ISO 2178/2360/2808, prEN ISO 19840,ASTMB244/B499/B659/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others.
  • Built-in wrist strap for added convenience and safety





SPESIFIKASI DeFelsko Coating Thickness Gauges PosiTest DFT

DeFelsko PosiTest DFT

Pocket sized coating thickness gauges

PosiTest DFT Ordering Guide


Measurement Range 0 – 40 mils 0 – 1000 µm
Accuracy ±(0.1 mils + 3%) ±(2µm + 3%)
Size  (4.25" x 1.7" x 0.8" 108 x 43 x 20 mm
Weight 1.9 oz. without batteries 54 g  without batteries
