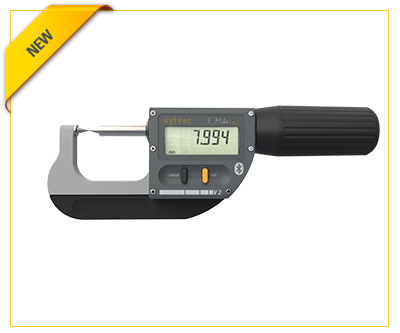

Sylvac Micrometer S_Mike PRO Point BT

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Sylvac Micrometer S_Mike PRO Point BT is offered with Anvils Knife-shaped 0.5mm-Cone 30°/Ø0.5mm. The main body itself is made of stainless steel frame with smooth grey enamel finish for protection against corrosion, scratches and temperature difference which can cause fluctuations in accuracy as with comparable micrometers. Sylvac Micrometer S_Mike PRO Point BT also has integrated Bluetooth® technology and works by using a precision ratchet mechanism to ensure constant force for daily routine everytime you turn the thimble.



Features :

  • Measuring range 0-25mm
  • Position memorized in sleeping mode (System Absolu SIS)
  • Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 even connected
  • Quick displacement of the measuring spindle 10 mm / rotation
  • Adjustable measuring force 5N / 10N
  • Repeatability and reproducibility never reached before
  • Thimble in polyacetal-copolymer



Benefits :

  • Measure spline gears, external dimensions by its lower jaws, and in many cases depth
  • Measuring external diameter of smaller pins, precision tool-making, cutting tool drills, cavities, thinner foils, mechatronics and general engineering.



SPESIFIKASI Sylvac Micrometer S_Mike PRO Point BT

Sylvac Micrometer S_Mike PRO Point BT Dimensions:

Sylvac Micrometer S_Mike PRO Point BT dimensions



Sylvac Micrometer S_Mike PRO Point BT Ordering Guide:

    803.0310
 Measuring range  mm 0-25
 Max. Error G 1)  mm 3
 Repeatability 2)  mm 1
 Anvils types  mm Point 30° - spherical ∅3 mm
 S_Connect: Proximity  Bluetooth® wireless technology
 Protection rating according to IEC 60529 IP67
 Setting by PC
 Adjustable measuring force 5N / 10N
 Non-rotating spindle
 Fast movement
 Preset function
 Smart Inductive Sensor

1) according to DIN 863

2) ±1 digit
