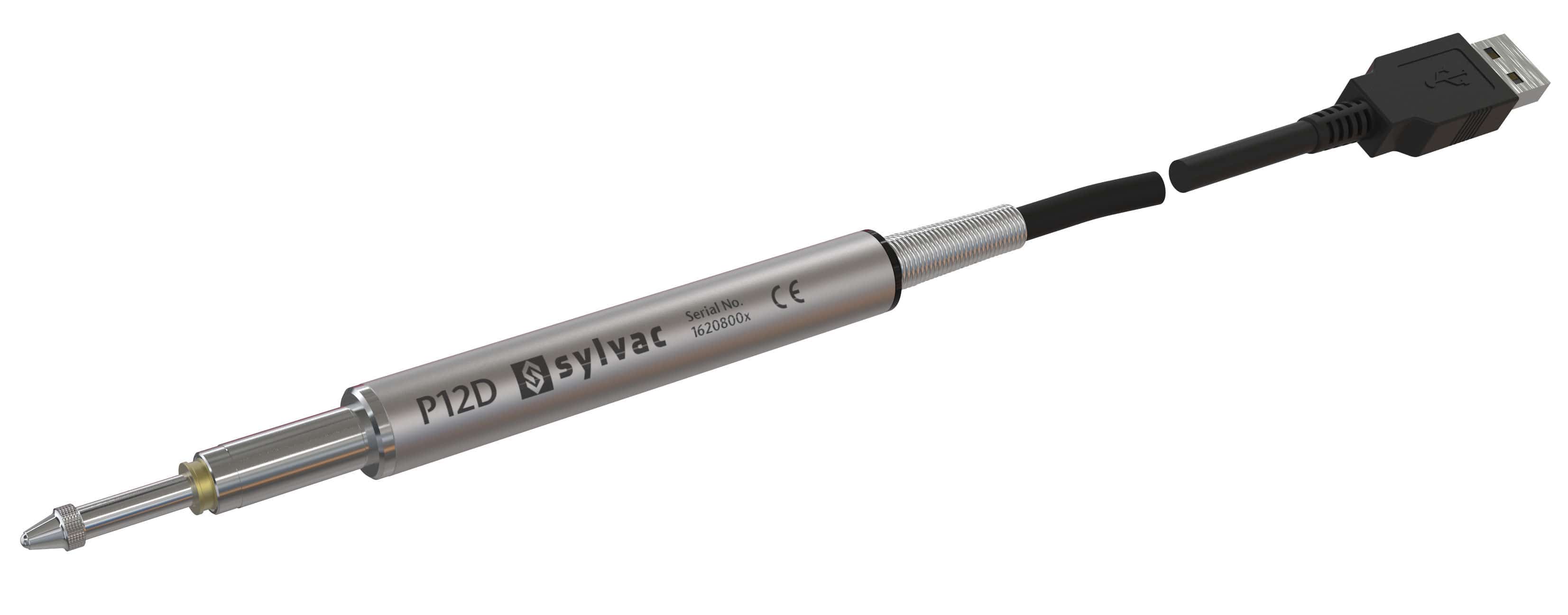

Sylvac Absolute Measuring Probe S_Probe P12D
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id
Sylvac Absolute Measuring Probe S_Probe P12D is the finest range of test probe ever made by Sylvac (test lead, test prod, or scope probe). The P12D series of multi-gauging test probes work as a physical device used to connect the electronic test equipment to a device under test (DUT). The innovative Sylvac Absolute Measuing Probe S_Probe P12D is equipped with a revolutionary measuring system which allows it to reach a resolution of 0.1 and 0.01 microns within an unmatched range of 12mm.
Thanks to its Dual inductive and capacitive probe system, which are powered and connected with USB cables, you can have an absolutely versatile multi-gaging device to create an improvised testing rig with direct application towards PC and smartphone through Sylvac's multiplexer software such as Sylvac Vmux. Equipped with a ball bearing for an optimal guidance, Sylvac's highly precision probes can be directly connected with Display Unit D300S or to a computer within remarkable repetitive accuracy of 0.08 μm.
Sylvac Absolute Measuring Probe S_Probe P12D will allow you to connect this testing probe to a multiplexer unit for daisy-chained operation or automated inspection such as the Sylvac Gauge Multiplexer Unit D302 & D304 and Sylvac Digital Display D400S IP65 through Sylvac Gauge Multiplexer Unit M-Bus for your multi-gauging needs. Furthermore, its constant measuring force mechanism, allows for various application in a lab environment as well as in a production line.
Sylvac Absolute Measuring Probe S_Probe P12D Features:
- Dual inductive and capacitive probe system
- Measuring range 12.7mm (1⁄2in), very high accuracy with excellent linearity
- Resolution 0.1µm (standard) and 0.01µm (high resolution)
- Max error of 0.6µm (high resolution) and 1µm (standard)
- Repeatability of 0.08µm (high resolution) and 0.2µm (standard
- Absolute system with integrated correction, no more pairing needed
- Patented dual inductive and capacitive system
- Very high accuracy and repeatability for multigauging jig and fixture
- Direct USB output also available with M8 industrial connection
- Ball bearing with straight 180° shank and 90° models
- Multi-protocol (ASCII, Orbit ® )
- Protection rating of IP67 for water, oil and coolant proof ability
- Compatible with all Sylvac digital units with interchangeable cables on most types
SPESIFIKASI Sylvac Absolute Measuring Probe S_Probe P12D
Sylvac Absolute Measuring Probe S_Probe P12D Dimensions:
Sylvac Absolute Measuring Probe S_Probe P12D Ordering Guide:
| High resolution | 801.1012 | 801.1018 | 801.1212 | 801.1218 | |
| Resolution type | High resolution | ||||
| Type | P12D HR USB | P12D HR USB CF 2) | P12D HR M8 | P12D M8 CF 2) | |
| Force 1) | N | 0.2 - 0.3 | 0.06 | 0.2 - 0.3 | 0.06 |
| Measuring range | µm | 12.7 | |||
| Resolution | µm | 0.01 | |||
| Max. Error | µm | 0.6 | |||
| Repeatability | µm | 0.08 | |||
| Nb measures/s | up to 300/s, according to configuration 4) | up to 300/s, according to configuration 5) | |||
| Output type | USB | M8 | |||
| Cable output | Straight | ||||
| Standard resolution | 801.2012 | 801.2017 | 801.2212 | |
| Resolution type | Standard | |||
| Type | P12D USB | P12D USB LF 3) | P12D M8 | |
| Force 1) | N | 0.4 - 0.8 | 0.2 - 0.3 | 0.4 - 0.8 |
| Measuring range | µm | 12.7 | ||
| Resolution | µm | 0.1 | ||
| Max. Error | µm | 1 | ||
| Repeatability | µm | 0.2 | ||
| Nb measures/s | up to 300/s, according to configuration 4) | up to 300/s, according to configuration 5) | ||
| Output type | USB | M8 | ||
| Cable output | Straight | |||
1) ±20%, vertical position
2) CF = constant force
3) LF = low force
4) depends on resolution and software
5) depends on resolution and number of probes
