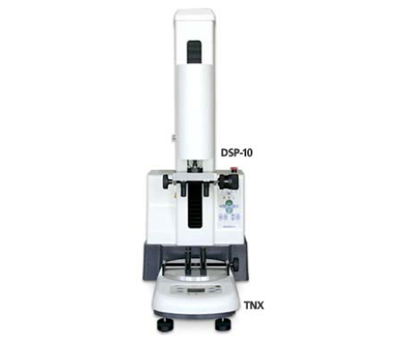

Shimpo Cap Torque Testing Unit TNX Series + DSP-10

Segera Hubungi Kami :

Shimpo's innovative motorized torque testing machine is an actual combination from the desktop Shimpo TNX series ( High-end digital torque meter ) and DSP-10 ( Motorized Torque stand ). The total set has been devised for semi-automatically measure opening torques of caps, lids, and screws of various containers, such as cosmetics, medical products, and beverages, as well as the tightening force of valves. It uses a servo motor and measures per-angle torque at a constant rotation speed to remove measurement data variation as well as enable more advanced tests and management. Furthermore, this unit is equipped with specialized software called "TNT_DSP" as standard. It can set the test rotation speed and angles, import torque and angle data, and display torque and angle or torque and time in graphical form.

Shimpo Motorized Torque Testing Unit TNX Series + DSP-10 could be used as a destructive tester to identify if there is any material weakness of the packaging during the screwing of cap process. Furthermore, the DSP-10 cap testing set can show the graph with torque and angle in Excel after download the measuring data by add-in software provided in the stand. The lower torque limit is considered as the minimum pressure of the cap to avoid any leak of the product. For better result, the Shimpo's TNX Series + DSP-10 torque tester needs to be combined with a leak test with a secure seal analyzer. The higher torque limit is the maximum torque the customer can apply to open or close the product's cap.

Your investment on Shimpo Motorized Torque Testing Unit TNX Series + DSP-10 will allow you to work on appropriate sampling checks in production line because motorizing manual opening torque tests eliminates the variation of measurement torques generated by human error. Depending on the production process, it could be necessary to control the opening torque, 24hours after the packaging process. Temperature variations can also modify the product characteristic as a result of different torque measurement. Furthermore, an optional rotation angle and speed of the rotation axis for opening torque tests can also be set.

Shimpo Motorized Torque Testing Unit DSP-5E Features:

Fast action test on both upper cap and lower bottles' body of 0.5 / 2/5/10 Newton · m
The high precision automatic torque test is possible by setting high-performance type digital torque meter "TNX series" and dedicated electric torque meter stand "DSP - 10".
Rotation Speed: 0.1～25.0rpm
Rotating Direction: Select Opening or Closing
Resolution for measuring degree: 0.1 degree
Overload detection: Stop the operation when detective the overload
Up/Down speed : 10～600mm/min
Max. travel distance: 400mm
Adopted high versatility USB as the interface, now you can connect with personal computer.
Equipped with specialized software called "TNT_DSP" as standard. It can set the test rotation speed and angles, import torque and angle data, and display torque and angle or torque and time in graphical form.
Improved data management function, now you can make the report easier as the data measured with the supplied special software and display graphs of torque and angle on Excel.
Abundant torque test mode as standard equipment with P. P test, angle test, torque test, destructive test, reciprocating test, sampling test

SPESIFIKASI Shimpo Cap Torque Testing Unit TNX Series + DSP-10
