Established in Germany, since 1948 Diatest Hermann Költgen GmbH is highly regarded by many engineering specialist in aerospace, defense and medical industry. Each Diatest solution is distinctively designed with practicality in mind. Diatest Hermann Költgen GmbH is DIN ISO 9001 certified. DIATEST guarantees ultimate quality and reliable instruments with the accuracy of up to 0.0002 mm / 0.000008 Inch.

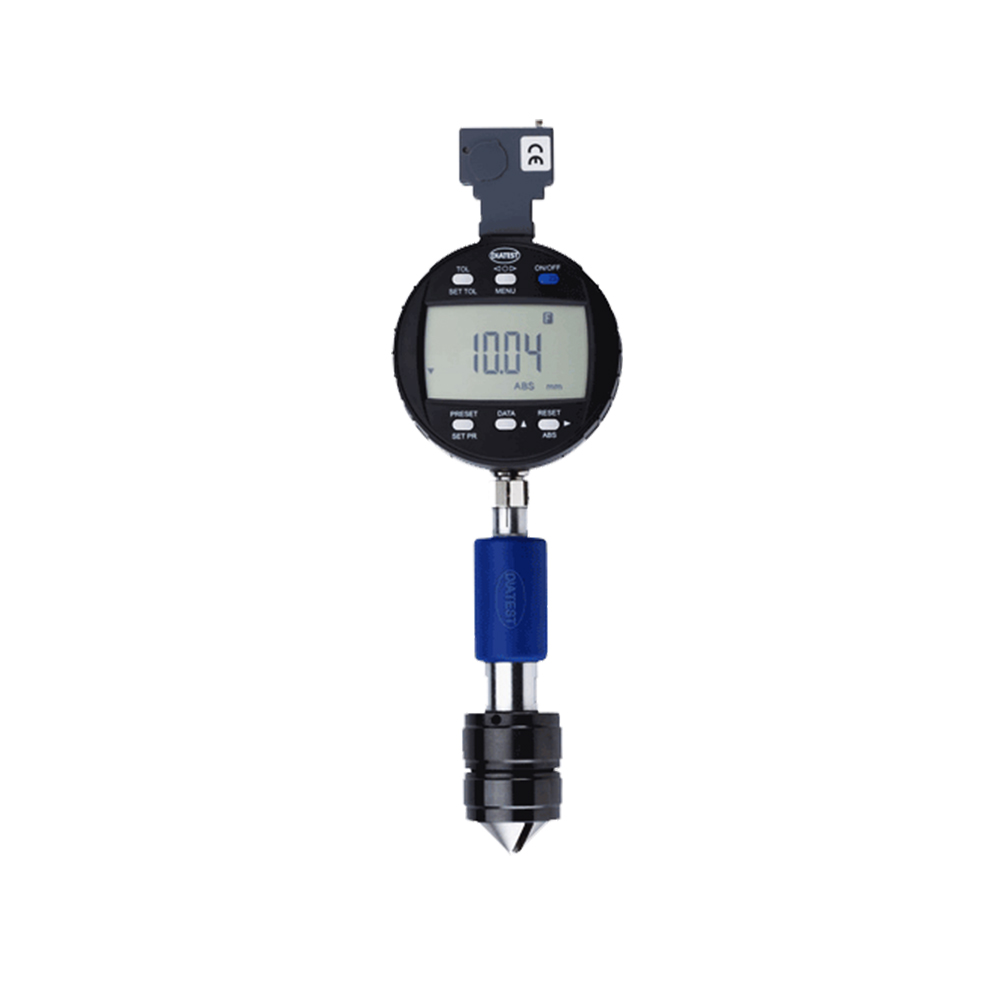

Diatest Internal Taper Gauge IKT Series are devised to measures the major angular on internal diameter of precision chamfers, tapered holes and countersinks. Once your operator knows the necessary angle of the chamfer gauge is and the approximate diameter of the chamfer, the correct gauge for their application can be selected conveniently. The measurement result on major diameter of the chamfer can be read instantly on the digital indicator.

Diatest Internal Taper Gauge IKT Series allows your operator to work faster as it does not require a master to set the gauge on every job. Selectable display models for Diatest chamfer gauge on internal measurements are consist of IKT-DI with digital indicator, IKT with dial gauge and IKT OS for value dial gauge without the stopper bar. Diatest Internal Taper Gauge IKT Series also equipped with wireless data transfer and USB connection for measurement data record or further analysis on spreadsheet (Ms Excel).

Delivered on stock, a Diatest gauge set includes: IKT gauge with shock protected mechanical special indicator c/w test certificate, wooden box, instruction for use. The IKT gauge is zero-set at the factory and ready for use on factory floor ranges from the aviation and aerospace industry, mould casting and jig making, the automobile and hydraulics industry, medical industry as well as general engineering.

Diatest Internal Taper Gauge IKT Features:

• Made of hardened steel for durability and repetitive accuracy.
• Shock protected indicator Scale graduation of indicator 0,01mm.
• Ease of use due to its direct approach of touch and go.
• Convenient internal calibration can easily be done by setting master or limit gauge.
• Delivered on stock by Diatest calibration lab.
• Fast and secure wireless transfer of measured values to your computer system
• Operating distances: up to 200 m in a clear field, up to 20 m in a building
• Powered by battery CR2450 with low energy consumption ensure your productivity with lesser down time and practical maintenance.

Diatest Internal Taper Gauge Selectable Models:

• Diatest IKT60 for cone < 60° = Measuring range 0.5 to 121 mm, several instruments needed
• Diatest IKT90 for cone < 60° and > 90°= Measuring range 0.5 to 120 mm, several instruments needed
• Diatest IKT127 for cone < 90° and => 127° = Measuring range 0.5 to 121 mm, several instruments needed
